IP68 Waterproof Explosion Proof Float Switch 250V Floating Level Switch

IP68 Waterproof  Explosion Proof Float Switch 250V Floating Level Switch
IP68 Waterproof  Explosion Proof Float Switch 250V Floating Level Switch IP68 Waterproof  Explosion Proof Float Switch 250V Floating Level Switch

Large Image :  IP68 Waterproof Explosion Proof Float Switch 250V Floating Level Switch

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKY-4
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Detailed Product Description
Brand: KRIPAL Current: 10A
Power Supply: 220V; 50Hz Color: Black / Blue
Purpose: Controlling Water Level Customized: Color
High Light:

Cable Float Level Switch

,

Water Pump Float Switch



IP68 Waterproof  Explosion Proof Float Switch 250V Floating Level Switch





Description:

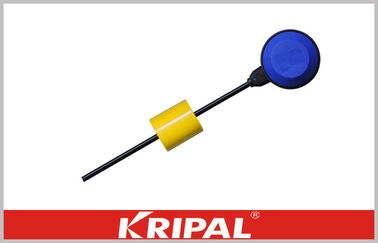

Cable Float Level Switch is a control device for automatic On/Off  pumps, motor and magnetic valves. It is also an alarm device at certain pre-determined surface levels and suitable for use in non-flammable liquids at 250 volts. In dangerous environments (e.g. wells and pumping stations) we recommend 24 V voltage. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) I-isolator switch units. Due to its large float casing the float Switch has a buoyancy which guarantees smooth, trouble-free operation under all conditions. The switch has double chamber and a final remolding finish to make it absolutely hermetic.



Installation:



Cable Float Switch is simply placed in the liquid so that the float follows the movement of the surface. The switching height differential is adjusted by moving the weight along the cable. The differential is minimum, when weight is nearest to the float. If the viscosity of the liquid is high, we recommend an extra weight on the cable.





Specifications:



 Float Regulator

 Water level Controller /float level switch

 Rated voltage

 250V(380V)

 Rated Frequency

  50Hz/60Hz

 Rated current

 10A(3A)

 Working temperature

 0 degee to 80 degree

 Mechanical endurance

 ≥100.000 times

 Electric endurance

 ≥ 50.000 times

 Protection grade

 IP68CS

 Standard cable length

 2m 3m 5m 10m 20m as customs required

 Switch currency

 +++ ≥50 000 switch workings tested by VDE specialization

 Protective connection

 T 70U

 Protection

 waterproof

 Working pressure

 max.1bar

 Circuit breaking capacity

 Directly KW with 250V

 Float

 Polypropylene

 Cable

 polypropylene Jacket

 Counter Weight

 Polypropylene Sealed Housing

 Rubber Cable

 provided and MOQ 2000pcs





OPTIONALS:


1. Color of balls
2. with counter weight or not
3. OEM, ODM
4. single function or double function
5. Cable length







Dimension:





IP68 Waterproof  Explosion Proof Float Switch 250V Floating Level Switch 0





FAQ:



A. How's the delivery time?
    Depend on your quantity, usually within 20days after receiving deposit



B. Would you accept OEM/ODM service?

    Glad to say that there is planning department, technical department and mould tooling center in

     our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.



C. Would you offer free sample?

     Samples are freely provided and shipping costs is paid on your end usually.



D What's your guaranty time?

    At least 2 years and depend the product



E What's your payment term?

    T/T, L/C; other terms is negotiable after further check
