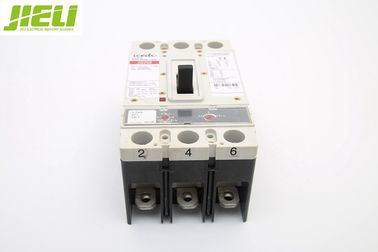

JM10 New type electrical mccb moulded case circuit breaker
Quick Detail:
|
Place of Origin:
|
Zhejiang China (Mainland)
|
Brand Name:
|
ICEDC
|
Model Number:
|
JM10
|
|
Type:
|
Moulded Case Circuit Breaker
|
Poles Number:
|
3
|
Crust color:
|
White/Black
|
|
Standard:
|
IEC60947-2
|
Certificate:
|
CE,ROHS, CB,ISO9001
|
Quality:
|
A
|
|
Price:
|
Reasonable
|
Appliance:
|
Protect circuit
|
Rated current:
|
160A
|
|
Rated voltage:
|
400V
|
Ui:
|
750V
|
Uimp:
|
8KV
|
Description:
JM10 series MCCB moulded case circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.
JM10 series moulded case circuit breaker is a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life.
JM10 series moulded case circuit breaker can be used for conversion of line and infrequent starting motor.
JM10 series moulded case circuit breaker can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage.
JM10 series moulded case circuit breaker can install connection line with front board and back board.
JM10 series moulded case circuit breaker also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.
Specifications:
|
TYPE
|
JM10
|
|
RATED CURRENT OF FRAME SIZE INM(A)
|
63
|
|
RATED CURRENT IN(A)
|
10,16,20,25,32,40,50,63
|
|
RATED OPERATION VOLTAGE UE(V)
|
AC400
|
|
RATED INSULATION VOLTAGE UI(V)
|
AC500
|
|
NUMBER OF POLES
|
3
|
3
|
4
|
|
LEVEL OF RATED ULTIMATE SHORT CIRCUIT BREAKING CAPACITY
|
S
|
H
|
|
RATED ULTIMATE SHORT CIRCUIT BREAKING CAPACITY ICU(KA)
|
AC690V
|
|
|
|
AC400V
|
25
|
50
|
|
RATED SERICE SHORT CIRCUIT BREAKING CAPACITY ICS(KA)
|
AC690V
|
|
|
|
AC400V
|
18
|
35
|
|
OPERATION LIFE WITH CURRENT
|
4500
|
|
OPERATION LIFE WITHOUT CURRENT
|
8500
|
|
SIZE
|
L
|
135
|
|
W
|
78
|
103
|
|
H
|
73.5
|
81.5
|
|
ARCING DISTANCE(MM)
|
0,≤50
|
Our service:
1. Samples: provide free samples.
2. Package: all products will be well packed before shipping.
3. Warranty: all products have 2-5 years warranty.
4. Delivery: within 30days after received the deposit.
5. Provide OEM and ODM service.
6. We can help you with any of your idea to design and put it into production.
7. Provide help for building factories, such as: spare parts, technical questions, financial matter, management problem , approach of sales...
FAQ:
Q1. What's the payment term?
A. We accept T/T, L/C, D/P, WEST UNION, PAYPAL, CASH
Q2. What's the delivery time?
A. Usually it will take about three weeks for production
Q3. What is the standard of package?
A. Export standard package or special package according to customer requirement
Q4. What kind of product quality your factory offer?
A. We offer most competitive prices with best quality
Q5. Do you accept OEM and ODM business?
A: We accept OEM with your authorization.
Q6. What kind of material of circuit breaker?
A. We have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference. If normally works well, only except the electrical life. Copper and silver is better and are also in higher price.
