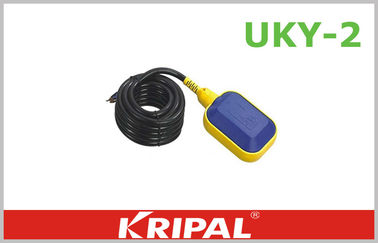

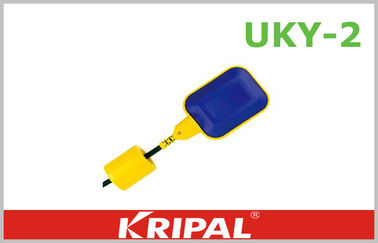

Blue Explosion Proof 220V Float Level Switch Septic Pump Float Switch

Blue Explosion Proof 220V Float Level Switch Septic Pump Float Switch
Blue Explosion Proof 220V Float Level Switch Septic Pump Float Switch Blue Explosion Proof 220V Float Level Switch Septic Pump Float Switch Blue Explosion Proof 220V Float Level Switch Septic Pump Float Switch

Large Image :  Blue Explosion Proof 220V Float Level Switch Septic Pump Float Switch

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKY-2
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Detailed Product Description
Brand: KRIPAL Current: 10A
Power Supply: 220V; 50Hz Color: Blue / Yellow
Purpose: Controlling Water Level Customized: Color
High Light:

Cable Float Level Switch

,

Water Pump Float Switch



Blue Explosion Proof 220V Float Level Switch Septic Pump Float Switch





Description:



Cable float switch is a device used to detect the level of liquid within a tank. The switch may be used in

a pump,  an indicator, an alarm, or other devices.

When used in a typical sump pump application, the float switch is used to turn an electric pump on and off.

As water enters the reservoir of the sump pump, a plastic float begins to rise. The float is commonly fastened

 to a rigid structure at one end, thereby, causing the float to pivot or roll over as it rises on the water level.



A micro switch inside of the float switch is connected to an electric pump by wiring that runs through the

chassis of the pump. Once the proper angle is reached by the float, the ball inside runs to the low side of the

switch and completes the circuit, allowing electricity to reach the pump motor and begin to pump the water out

 of the basement or structure. Once the water has been pumped out of the reservoir and the float reaches its

 resting level once again, the ball flows out of the switch and the contact is broken within the wiring harness,

 turning off the pump motor. In this design, the float switch is commonly housed in a copper, aluminum or tin

float canister to prevent rust and deterioration in the submerged position.





Specifications:



Model

UKY-2

Micro switch

10(8)A250V -  10(4)A 380V

Switch currency

More than 50000 ON/OFF tested as VDE standards

Protective connection

T70U

Protection grade

IP68

Max temperature

70

Working pressure

Max. 1 bar

Power supply

220VAC 50HZ

Ambient temperature

-30 - +80

Power consumption

Less than 1.5kw





Competitive Advantage:



1. The core of cable is real copper not copper - covered aluminum

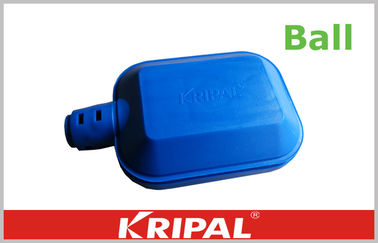

2. Good micro switch in the ball ensure the long life of float switch

3. The raw materials of plastic are brand-new with high quality





Dimension:





Blue Explosion Proof 220V Float Level Switch Septic Pump Float Switch 0





Special requirements?



We will help you find an individual solution for your switching needs.



Our project engineers are here to understand the special requirements of your project and assist to develop a solution as a partner.

Should your requirements not be covered by our extensive standard product range we have our own R&D and mould tooling center for special switches in order to flexibly, promptly and cost effectively meet your individual requirements.



Just let us know your ideas, and we will show you a great solution.
