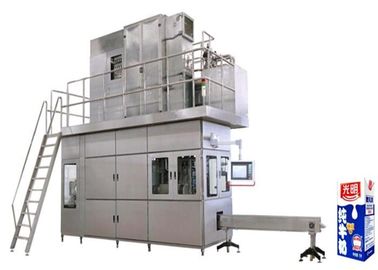

High Speed Beverage Filling Line / Aseptic Brick Carton Filling Machine for Fruit Juice or Tea

High Speed Beverage Filling Line / Aseptic Brick Carton Filling Machine for Fruit Juice or Tea
High Speed Beverage Filling Line / Aseptic Brick Carton Filling Machine for Fruit Juice or Tea High Speed Beverage Filling Line / Aseptic Brick Carton Filling Machine for Fruit Juice or Tea High Speed Beverage Filling Line / Aseptic Brick Carton Filling Machine for Fruit Juice or Tea High Speed Beverage Filling Line / Aseptic Brick Carton Filling Machine for Fruit Juice or Tea

Large Image :  High Speed Beverage Filling Line / Aseptic Brick Carton Filling Machine for Fruit Juice or Tea

Product Details:
Place of Origin: Shanghai, China
Brand Name: Joylong
Certification: ISO
Model Number: JB-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: all equipments and machines packed in worthy of sea shipping
Delivery Time: in 90 days upon receipt of advance payments
Payment Terms: 30% of total amount paid by T/T in advance and the balance paid by T/T or L/C at sight
Supply Ability: 10set/Month
Detailed Product Description
Volume: 125-350ml 500-1000ml Material: PE/PAPER/PE/AL/PE/PE Six Layer Coiling Block Composite Material
Capacity: 2000BPH-8000BPH Shelf Life: One Year
Warranty: One Year Installation: Turn Key Solution
Highlight:

beverage filling machine

High Speed Beverage Filling Machine , Aseptic Brick Carton Juice Filling Machine





Main Feature



The main features are: disposable auto-complete feed, sterilization, box making, filling, forming, sealing action, the molding of composite materials using hydrogen peroxide spray and high-intensity ultraviolet radiation and sterile hot air drying, packaging, materials completion of the aseptic chamber of the filling and after the filling of the seal are in a positive pressure conditions, thus ensuring a sterile packaging materials and materials to be packaged through a juice beverage after the UHT sterilization at room temperature shelf life of long up to one year. In addition, the aircraft PLC optical correction, frequency control, pneumatic solenoid valve, vacuum systems, liquid level control, smart electronic thermostat adjustment, automatic fault alarm system and sterile room, etc. Germany, Japan and other countries of the famous brand , the whole machine is used stainless steel, beautiful appearance, convenient operation.



Main Technical Parameters



Production speed

The net content is 1,000 milliliter, 1,500-2,000 bags per hour

Shapes of Packing

Brick, slender

Packing material

PE/PAPER/PE/AL/PE/PE six layer coiling block composite material

Utilization power

24 Kw (power: 4 Kw, electrical heating: 20 Kw)

Utilization voltage

220V/380V

Frequency of power utilization

50Hz/60Hz

Compressed air

0.4-0-6Mpa, 1.0M³/min

Technological process

Formfeed-code-sterilization-filling-forming

Mode of operation

PLC control, human-computer interface operate

Shelf life of product

Under the indoor temperature of 25-30℃, the guarantee period of the common drink is 12 months and 6 months for dairy.

Boundary dimension

L×W×H=6,000×1,600×4,000mm





Equipment Configuration



No.

Name

Configuration

Quantity

Brand

1. Machinery molding

101

Lower traction part

Worm and gear reducer NARV50-15 is used for main drawing roller which is equipped with 1 set of three-phase asynchronous motor of 0.37 KW; one Japan SMC cylinder MA40x35 is used for traction rubber roller.

1 set

Speed reducer of Japan Inovance

102

Locating mechanism

One set of thin cylinder SDA40x15 of Japan SMC is used for brake.

1 set



103

Film mulching mechanism

One set of air cylinder MA16x30 of Japan SMC under rubber roller of pressing PP film.

1 set



104

Putting model mechanism

One group of guide rails of Germany Igus; 2 connecting-film cylinders SDA12x12 of Japan SMC; the heater of connecting film uses PTC ceramic heater band.

1 set



105

Guide wheel mechanism

HRC55-60 pin axle of Japan, all are stainless steel hard axles, and heat treatment is for surface hardness; pin axle uses Germany Igus.

1 set



106

Rack of horizontal sealing

The rack material is aviation aluminum 7075.

1 set



107

Clamping jaw of horizontal sealing

The engineering plastics of American Dupont; high-end heat treatment is made for the stainless steed parts of key places; bearing of Japan NSK; counterpoint mechanism motor of 0.75 KW of Japan Inovance; electrode part of horizontal sealing uses American C17200 beryllium bronze;

1 set



108

Clamping jaw motor of horizontal sealing

Servo motor of 4.4 KW of Japan Inovance

1 set



109

Station chain mechanism

All 26 pieces of chain boards are fine finished, all materials are 7075 aviation aluminum, and oxidative treatment are made for surface.

1 set



110

Output mechanism

The reducer of bevel gear of 1:1 is APEX brand of Taiwan. Cam structure is used for packaging, and swivel plate is outside, eight swing arm moving packages for one circle, and the package moving is automatic and flexible.

1 set



111

Motor of output mechanism

Servo motor of 4.4 KW of Japan Inovance

1 set



112

Upper traction mechanism

The bearing of traction case uses the stainless bearing of Sweden SKF, which is heat resistant, corrosion resistant and acid-base resistant. Worm and gear reducer NARV50-15 is used for main drawing roller which is equipped with 1 set of three-phase asynchronous motor of 0.37 KW; one Japan SMC cylinder MA40x35 is used for traction rubber roller.

1 set

Speed reducer of Japan Inovance

113

High-frequency heater of horizontal sealing

2 KW, RDRF-05, high-frequency electro-magnetic induction

1 piece

Italy CEIA

114

High-frequency heater of longitudinal sealing

2 KW, RDRF-05, high-frequency electro-magnetic induction

1 piece

Italy CEIA

115

High-frequency heater of film mulching

2 KW, RDRF-05, high-frequency electro-magnetic induction

1 piece

Italy CEIA

116

Automatic lubrication oiling machine

30 W, Taiwan TUNGTAY

1 set



2.  Aseptic system

201

Hot air heater

15KW

1 piece

Japan SAKAGUCHI

202

Hydrogen peroxide groove mechanism

The whole hydrogen peroxide groove use the 316 material, inside roller bearing is Japan ceramic bearing.

1 set



203

Hydrogen peroxide pump

0.37KW, 300L/H



1 set

GRUNDFOS

204

Hydrogen peroxide heater

2KW

3 pieces

Japan SAKAGUCHI

205

Water-cycling vacuum pump

4KW

1 set

German BECKER

206

Pneumatic two position three -way reversing valve

φ51.3

2  pieces

APV

207

Plate heat exchanger

BRF05-160-316L

1 set

Shanghai NANHUA

208

Temperature sensor

0~200℃/450℃

5

5 pieces

OMRON

209

Spherical valve, butterfly bamper, angle seat valve



Several

Shanghai Yuanan

210

Pressure regulating valve, relief valve



1 piece for each

APV

211

Constant flow valve



2 pieces

APV

212

Sterile proportional adjusting valve



1 piece

German BURKERT

3. Electric configuration

301

Air circuit breaker

C65N-D



Schneider

302

Alternating current contactor

LC1-D****N



Schneider

303

Intermediate relay

MY2NJ



OMRON

304

Transducer

ATV303H



Schneider

305

Servo motor/servo drivers

LSMH/LS600P



Japan Inovance

306

Programmable controller PLC

S7-200CN



Siemens

307

Human-computer interface

6AV66480BE113AX0



Siemens

308

Temperature controller

PXR9NEH





Japan fuji

309

Pressure regulating module

STY**A-III



Fushen science and technology

310

Proximity switch

LE**SF**DP0



LANBAO

311

Magnet switch

D-AS3



Japan

312

Color mark sensor

KT5W-2P2116D



German SICK

313

Absolute value encoder

TRD-NA



Japan

314

Switching power supply







MEAN WELL
