High Efficiency Panasonic Compressor Swimming Pool Heat Exchanger Pump

High Efficiency Panasonic Compressor Swimming Pool Heat Exchanger Pump
High Efficiency Panasonic Compressor Swimming Pool Heat Exchanger Pump

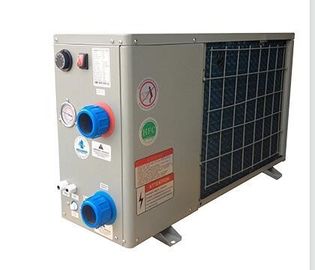

Large Image :  High Efficiency Panasonic Compressor Swimming Pool Heat Exchanger Pump

Product Details:
Place of Origin: China
Brand Name: POWERWORLD
Certification: CE CB RoHS Certificate
Model Number: ECO05Hs
Payment & Shipping Terms:
Minimum Order Quantity: 10 units
Price: USD 300 to 500 per units
Packaging Details: Carton box with wooden pallets
Payment Terms: D/P, L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 5000 units per month
Contact Now
Detailed Product Description
Cabinet: Galvanized Steel Cabinet Colour: White
Controlling: Manual Control COP: Upto 5.0
Compressor: Panasonic HE: Titanium Heat Exchanger
Highlight:

Swimming Pool heater pump

High COP Pool Heat Pump For Intex Pools Wooden Pools With CE RoHS NF414 FPP Certificates​



POWERWORLD pool heat pump provides the maximum energy efficiency and reliability. Working efficiently, the heat pump units absorb another 6 times of free heat from the ambient environment, and transfer it to the pool water, which makes the heating process ecological and cost saving.

1.  Ultra Efficiency COP>6
With latest EEV technology, POWERWORLD pool heat pump provides superior hydraulic flow for excellent efficiency and maximum energy savings in all different climate situation.

2.  High quality pure Titanium heat exchanger guaranties the heat pump can heat the pool water after chlorine, salts, and bromine treatments to more than 10 years.


3. POWERWORLD pool heat pump can work under wide ambient temperature ranges, from -70C to 430C, and provide all year-round warm water supplies, even the unit is installed in cold outdoor area.



4. Adopt high quality Danfoss 4-way valve, and combined with POWERWORLD intelligent auto-defrosting system, it assures the heat pump unit can work smoothly under severe cold environment.



5. Quiet operation

With the superior low-noise 6# fan motor, plus the inner sound-absorbing foam, which keeps you far away from the neighborhood and children complains of too high running noisy.





Models NO:  Gavalized Steel Cabinet
PHP03Hs PHP05Hs PHP09Hs
* Capacity at air +26℃ water-in 26℃
Heating Capacity kW 3.50 5.00 8.50
Power Consumption kW 0.78 1.10 1.78
COP 　 4.5 4.5 4.8
* Capacity at air +15℃ water-in 26℃
Heating Capacity kW 3 3.7 5.80
Power Consumption kW 0.75 0.9 1.40
COP 　 4.0 4.1 4.1
* Power Supply
Voltage V 220V/50Hz/1Ph
Rated current A 3.5 4.9 7.5
Circuit breaker A 10 10 20
* General data
 Water flux m3/h 2.5-3 2.5-3.5 2.8-5.0
Water connection size mm 50 50 50
Water temperature mini/max  °C 15-40 15-40 15-40
Ambient working condition °C 5-43 5-43 5-43
Compressor 　 Rotary Rotary Rotary
Noise level at 10m  dBA 36 38 40
Noise level at 1m dBA 44 46 46
Refrigerant R410a Kg 0.6 0.65 0.95
* Unit size
Net dimension  mm 755*335*510 755*335*510 940*360*545
Net weight Kg 34.0 37.00 50.0
Package dimension mm 850*330*520 850*330*520 1060*380*570
Gross weight Kg 39.0 42.00 56.0
* Pool size
Advised pool volume
(with insulated pool cover)		 m³ 15 20 30

High Efficiency Panasonic Compressor Swimming Pool Heat Exchanger Pump 0
