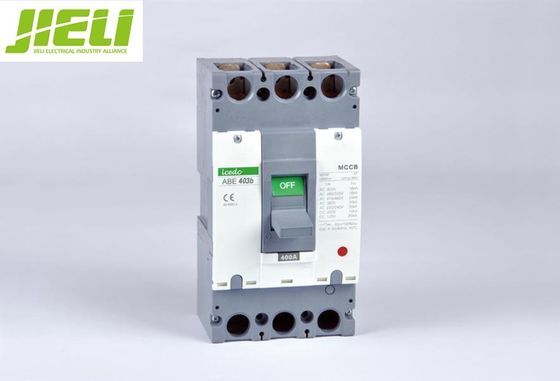

GB14048.2 203A 3P / 4P MCCB Moulded Case Circuit Breaker 16A ~ 630A ABS-33b

GB14048.2 203A 3P / 4P MCCB Moulded Case Circuit Breaker 16A ~ 630A ABS-33b
GB14048.2 203A 3P / 4P MCCB Moulded Case Circuit Breaker 16A ~ 630A ABS-33b

Large Image :  GB14048.2 203A 3P / 4P MCCB Moulded Case Circuit Breaker 16A ~ 630A ABS-33b

Product Details:
Place of Origin: Zhejiang,China(Mainland)
Brand Name: JIELI
Certification: CE/ISO9001/IEC60898-1
Model Number: JL-ABE
Payment & Shipping Terms:
Minimum Order Quantity: 500pieces
Price: Negotiable
Packaging Details: The carton is strong enough for sea and air shipment, residual current circuit breaker will be designed according to your requirement.
Delivery Time: Within 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability: 1000000 Piece/Pieces per Month
Detailed Product Description
High Light:

mccb switch

,

electric circuit breaker

GB14048.2 203A 3P / 4P MCCB Moulded Case Circuit Breaker 16A ~ 630A ABS-33b





Quick Detail:



Place of Origin:

Zhejiang China (Mainland)

Brand Name:

JIELI

Model Number:

JL-ABE moulded case circuit breaker

Type:

Moulded Case Circuit Breaker 100,160,250,400,630D/N/H/L;1250D/N

Poles Number:

4

Breaking capacity:

70KA-150KA

Number of poles:

1P,2P,3P,4P

Certificate:

CE

Standard:

IEC60947-2





Description:



JL-ABE series moulded case circuit breaker (hereinafter referred to as circuit breaker)is suitable for

circuit of AC 50HZ or 60HZ,rated current 16A~630A,insulatin voltage 750V,rated operating voltage 690V below, mainly used for low voltage distribution network to distribute energy and protect circuit and power device against overload, short circuit ,under voltage, grounding fault and so on.

By means of giving the special setting for release, JL-ABE moulded case circuit breaker can be used as starting protection circuit breaker of motor.

JL-ABE moulded case circuit breaker conform to standard GB14048.2.





Specifications:



Type

2pole

ABE-32b

ABE-52b

ABS-52b

ABE-62b

ABS-62b

3pole

ABS-33b

ABE-53b

ABS-53b

ABE-63b

ABS-63b

Frame size(AF)

30

50

60

Rated operational voltage(V)Ue (50/60Hz)

600

600

600

600

600

Rated insulation voltage(V)Ui(50/60Hz)

690

690

690

900

900

Rated impulse withstand voltage(KV)Uimp

6

6

6

6

6

Ultimate breaking capacity (KA,Icu AC 50/60Hz)

220V/240V

10

10

25

10

25

380V

7.5/5

7.5/5

14/10

7.5/5

14/10

415V

7.5/5

7.5/5

14/10

7.5/5

14/10

440/460V

5

5

10

5

10

480/500V

2.5

2.5

7.5

2.5

7.5

600V

2.5

2.5

5

2.5

5

Utilization category

A

A

A

A

A

Endurance

Mechanical

8500

8500

8500

8500

8500

Electrical

1500

1500

1500

1500

1500



Type

2pole

ABE-102b

ABS-102b

ABE-203b

ABS-203b

ABE-403b

ABS-403b

3pole

ABE-103b

ABS-103b

Frame size(AF)

100

225

400

Rated current(A)

5,10,15,20,30,

40,50,60,75,100

15,20,30,40,50,

60,75,100

100,125,150,

175,200,225

250,300,

350,400

Rated operational voltage(V)

Ue (50/60Hz)

600

Rated insulation voltage(V)

Ui(50/60Hz)

690





Our service:



1. Samples: provide free samples.

2. Package: all products will be well packed before shipping.

3. Warranty: all products have 2-5 years warranty.

4. Delivery: within 30days after received the deposit.

5. Provide OEM and ODM service.

6. We can help you with any of your idea to design and put it into production.

7.Provide help for building factories, such as: spare parts, technical questions,

financial matter, management problem , approach of sales...
