| Product name: | Resettable Circuit Breaker | Protection class: | IP67 |
|---|---|---|---|
| Rated operating temperature: | 25°F(32°C)to180°F(82°C) | Rated storage temperature: | 30°F(34°C)to300°F(149°) |
| Terminal: | 10-32 thread and quick-connector available | Torque rating: | 24in-lb(2.7Nm) max |
| Standard: | SAEJ1625;ABYCE-11;CE;SAE;J1171 | Rating: | 5-50A, 14VDC, 28VDC(For T2 and T3) |
| Interrupt Rating: | 2.5KA @ 12VDC(T1& T1-28VDC, SEALED & T3) | ||
| प्रमुखता देना: | automatic reset circuit breaker |
||

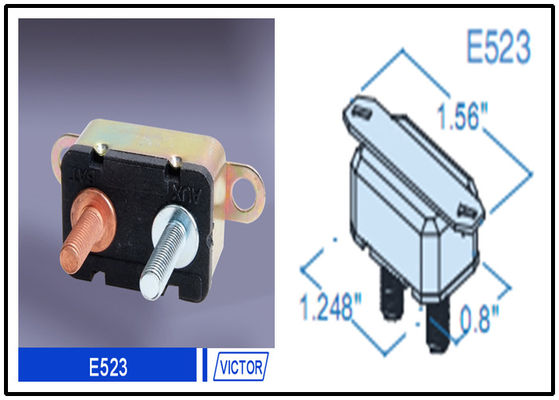

15A Automative Reset Resettable Circuit Breaker For Automotive Use With Wiring Products Feature Single pole thermal trip Mouting Stud mount,2*10/32stud.0.66(Aux)0.50(Batt) Rating 5,10,15,20,25,30,40,50A Voltage 14Vdc,(24Vdc need special noted) IP grade Plase cover has splash /dust proof Safety Meets SAE J553 specification Applications: Typically used in auxiliary and accessory circits in truck, bus', RVs and marine systems. Others include battery chargers and DC audio systems
