Printing Adhesive Membrane Switch Keypad Waterproof Custom For Machine

China Printing Adhesive Membrane Switch Keypad Waterproof Custom For Machine supplier

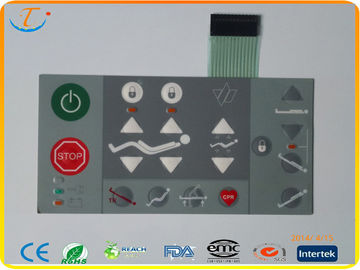

Large Image :  Printing Adhesive Membrane Switch Keypad Waterproof Custom For Machine

Product Details:

Place of Origin: dongguan,guangdong,china
Brand Name: tiantai :membrane switch
Certification: ROHS
Model Number: TT01

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: EXW price/FOB shenzhen port price
Packaging Details: standard export package
Delivery Time: within 15 workdays after confirm sample
Payment Terms: T/T,Western union,paypal
Supply Ability: 100000pcs/year
Contact Now
Detailed Product Description

Printing Adhesive Membrane Switch Keypad Waterproof Custom For Machine









Description

A flexible membrane switch is an electrical switch for turning a circuit on and off. It differs from a mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a circuit printed on a PET or PC.





Material:PET advised, matte PC (smooth), gloss PC + matte oil, gloss PC and PVC

Color:Pantone and RAL color matching system

Thickness:0.4---1.4mm

LED windows:transparent and translucent

Embossed keys:no embossed keys and domes;domes without embossed keys;embossed keys without domes;embossed keys and domes

Adhesive:3M9448,3M300LSE,3M467,3M468, Nitto etc.

Tail:tail with clear mask or green mask





Parameter:



Name Flexible Membrane Switch
Operating Voltage ≤42vdc
Current ≤100ma
Contact resistance 30-100(ω)
Insulation Resistance ≥100mω
Key operation force 280g
Rebound time ≤10(ms)
Substrate voltage ≤1500vdc
Life times 500 000 (times)
Operating Temperature 30℃~70℃




Quotation Request:



The more information that is supplied regarding applications, functional requirements and environmental concerns, the more accurate our quotation will be.3D Drawing design will be better.



  • Switch application
  • Quantities required for prototypes and production
  • Material requirements
  • Graphic overlay material, polycarbonate or polyester
  • Overlay finish requirement
  • Number of colors to be printed on graphic overlay
  • Overall dimensions or prints
  • Embossing requirements
  • Type of termination required and tail length
  • Dome type, if tactile feel is needed
  • Pinout requirements
  • Environmental concerns
  • Back-lighting
  • Other special requirements
