6-32a Mini Circuit Breaker DPN Type MCB For Household Installation

China 6-32a Mini Circuit Breaker DPN Type  MCB For Household Installation supplier

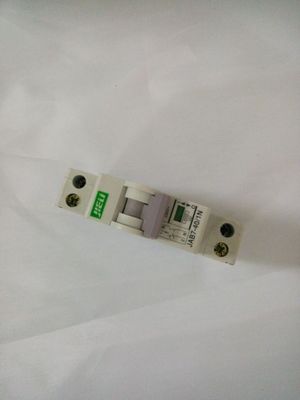

Large Image :  6-32a Mini Circuit Breaker DPN Type MCB For Household Installation

Product Details:

Place of Origin: Zhejiang,China(Mainland)
Brand Name: JIELI
Certification: CE/ISO9001/IEC60898
Model Number: JL-DPN

Payment & Shipping Terms:

Minimum Order Quantity: 1200pieces
Price: Negotiable
Packaging Details: Standard export carton or according to your request.
Delivery Time: Within 20 days
Payment Terms: L/C,D/P,T/T, Western Union, MoneyGram
Supply Ability: 50000POLES/DAY
Detailed Product Description
Current: 6-32A


6-32a Mini Circuit Breaker DPN Type  MCB For Household Installation



Quick Detail:

Type:Mini circuit breaker
Electrical life:10000
Current:6-32A
Material:PA66, copper, iron etc.
Service short-circuit breaking capacity:3000A-6000A


Description:



◆ JL-DPN Mini Circuit Breaker has high short-circuit capacity 6KA.
JL-DPN Mini Circuit Breaker is designed to protect circuit carrying big current up to 125A.
JL-DPN Mini Circuit Breaker has contact position indication.
JL-DPN Mini Circuit Breaker is used as main switch in household and similar installation.
◆ The standard of JL-DPN Mini Circuit Breaker:IEC60947-2,GB14048.2.
JL-DPN Mini circuit breaker belongs to the advanced level of the nineties in the world
instead of the old generation of KC45N.


Applications:

JL-JL-DPN Mini circuit breaker are used in lighting distribution system in industry,commerce and
dwelling, and protect  fractional electric motors.


Specifications:


Electrical features

Rated current In

A

    6, 10, 16, 20, 25, 32,

Poles

P

1.2.3.4

Rated voltage Ue

V

240/415

Insulation voltage Ui

V

500

Rated frequency

Hz

50/60

Rated breaking capacity

A

1-32A/6000A,40-63A/4500A,

Rated impulse withstand voltage (1.2/50) Uimp

V

4000

Dielectric test voltage at ind. Freq. for 1 min

Kv

2

Pollution degree



2

Thermo-magnetic release characteristic



B, C, D

Mechanical features

Electrical life

t

4000

Mechanical life

t

10000

Protection degree



IP20

Reference temperature for setting of thermal element

°C

30

Ambient temperature (with daily average≤35°C)

°C

-5~+40 (special application please refer to temperature compensation correction)

Storage temperature

°C

-25~+70
