Residual Current Circuit Breaker Low Voltage 6A - 63A With Compact Design

China Residual Current Circuit Breaker Low Voltage 6A - 63A With Compact Design supplier

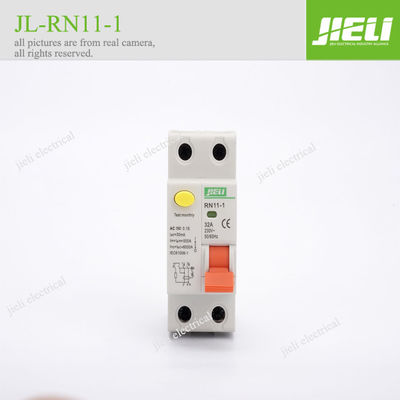

Large Image :  Residual Current Circuit Breaker Low Voltage 6A - 63A With Compact Design

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: JIELI
Certification: CE/ISO9001/IEC60898
Model Number: RN11-1

Payment & Shipping Terms:

Minimum Order Quantity: 2400 Piece/Pieces
Price: Negotiable
Packaging Details: Standard Export Carton or According to the Customer
Delivery Time: 15-30days after deposit
Payment Terms: L/C,D/P,T/T, Western Union, MoneyGram
Supply Ability: 1000000 Piece/Pieces per Month
Detailed Product Description



Residual Current Circuit Breaker Low Voltage 6A - 63A With Compact Design





Quick Detail:



Model Number: JL-RN11-1
Type: Residual Current circuit breaker
Poles Number:2/4p
Cover: fire proof
Certificate: CE/ISO9001/IEC60898
Current: 6A-63A
Quality level: A
Breaking capacity: 4.5KA, 6KA , 10KA
Point: Silver/cooper
Warranty: 5years



Description:





RN11-1 residual current circuit breaker is characterized by compact design, light weight, long service life, different handle colour for different rated current. RN11-1 Residual Current Circuit Breaker are widely used in electrical system. enterprise,post ect.
RN11-1 residual current circuit breaker 32A rccb  are used for protection against indirect touching of parts under voltage, for prevention of lasting voltage on earthed parts which should appear because of a defect in the electrical installation and for protection against direct contacts of parts under voltage in case of In<30mA.





Specifications:







Product name

RN11-1

Standard

IEC61008/GB16196

Product Certifications

CE,CB,3C

Product Function

Leakage protection, Isolation function

Rated current(A)

<25   <40  <63

Pole No

1P+N  3P+N

Rated voltage(V)

230V/400V

Rated frequency(Hz)

50/60

Sensitivity (In)

30mA,100mA,300mA

Environment  temperature

-25°C-+60°C

Connection type

Tunnel style, Pin style, U style

Biggest wiring ability

35mm2

Action  style

AC22

Installation style

35mm standard 35mm guide

Im,Im(A)

500

Inc,Ic(A)

6000

Mechanical life

10000

Protection degree

IP20

Weight(g)

220




Competitive Advantage:




The function of RN11-1 Residual Current Circuit Breaker RCCB
1) Residual Current Circuit Breaker distribute and protect the electrical equipment
2) RN11-1 Residual Current Circuit Breaker is against overload
3) RN11-1 Residual Current Circuit Breaker is in reasonable price.
2  RN11-1 Residual Current Circuit Breaker has high quality
3. RN11-1 Residual Current Circuit Breaker conforms to IEC60898
