250V 10A ROHS PA66 3.81 5.0mm Spring Terminal Block connector 22AWG AC 1500V / 1Min

Name: 250V 10A ROHS PA66 3.81 5.0mm Spring Terminal Block connector 22AWG AC 1500V / 1Min
Brand: Lianqi
SKU: FS235
Rating: 4.9 (113 reviews)

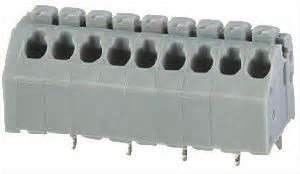

Large Image : 250V 10A ROHS PA66 3.81 5.0mm Spring Terminal Block connector 22AWG AC 1500V / 1Min

Product Details:

Place of Origin:	Shenzhen
Brand Name:	Lianqi
Certification:	CE, ROHS,UL,SGS
Model Number:	FS235
Number of Contacts:	2P,3P
Conductor Size:	22-14AWG
Type:	Spring
Clips:	stainless steel
Pitch:	5.0/3.81mm
Pin Header:	Phosphor Bronze, Tin
Housing:	PA66, UL94V-0

Contact Now

Detailed Product Description

High Light:

spring connector

spring terminal block

250V 10A ROHS PA66 3.81 5.0mm Spring Terminal Block connector 22AWG AC 1500V / 1Min

Spring Terminal Block connector FS235
Pitch:3.81/5.0mm
clips:stainless steel
Pin Header: Brass, Tin plated

3.81/5.0mm Spring Terminal Block connector FS235

CE ROHS certificate

Material:
Pitch:3.81/5.00mm
clips:stainless steel

Pin Header: Phosphor bronze, Tin plated
Housing: PA66, UL94V-0

Electrical:
Rated voltage: 250V
Rated current: 10A
Withstanding voltage: AC1500V/1Min
Wire range: 22-14AWG

Mechanical:
Temperature range: -40°C to +105°C
Maximum Soldering: +250°C, for 5 seconds
Strip length: 9-10mm

professional manufacturer of terminal blocks, connectors, power wires and power sockets, with R&D Center, Mould Manufacturing Dept., Injection Molding Dept. and Metal Processing Dept., as well as advanced management methods and production equipment. In addition, we undertake OEM service and promise to offer first-class products and services. We update products in the principle of "Customer Supreme, Credit First".

Forsent Electronics welcomes the customers from both at home and aboard to come sincerely, and work together hand in hand to create brilliance together

3.81/5.0mm Spring Terminal Block connector FS235
