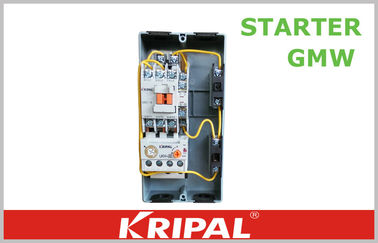

GMW LE1-D Electro Magnetic Contactors And Starters , Single Pole Contactor
A magnetic starter is a device designed to provide power to electric motors. It includes a contactor as an essential component, while also providing power-cutoff, under-voltage, and overload protection.
Description:
UKW1 series magnetic motor starter are suitable for 50Hz or 60Hz, rated voltage up to 660V, current up to 95A circuit. In order to protect motor starting, accelerating the motor to rated rev, against overload operation and artificially breaking the circuit of protected motor.
Specifications:
|
Type
|
Rated ultimate
|
Rated current
|
AC 1 duty
|
|
Single-phase motor
|
AC 3 duty
|
AC 3 duty
|
A
|
|
110V
|
220V
|
200-220V
|
380V-440V
|
500V-550V
|
200V-220V
|
380V-440V
|
500V-550V
|
|
UKW1-9MB
|
0.4
|
0.8
|
2.5
|
4
|
4
|
11
|
9
|
7
|
25
|
|
UKW1-12MB
|
0.5
|
1
|
3.5
|
5.5
|
7.5
|
13
|
12
|
12
|
25
|
|
UKW1-18MB
|
0.75
|
1.5
|
4.5
|
7.5
|
7.5
|
18
|
18
|
13
|
40
|
|
UKW1-22MB
|
0.9
|
1.8
|
5.5
|
11
|
15
|
22
|
22
|
22
|
40
|
|
UKW1-32MB
|
1.2
|
-
|
7.5
|
15
|
18.5
|
32
|
32
|
28
|
50
|
|
UKW1-40MB
|
1.7
|
-
|
11
|
18.5
|
22
|
40
|
40
|
32
|
60
|
|
UKW1-50MB
|
-
|
-
|
15
|
22
|
30
|
55
|
50
|
43
|
80
|
|
UKW1-65MB
|
-
|
-
|
18.5
|
30
|
33
|
65
|
65
|
60
|
100
|
|
UKW1-75MB
|
-
|
-
|
22
|
37
|
37
|
75
|
75
|
64
|
110
|
|
UKW1-85MB
|
-
|
-
|
25
|
45
|
45
|
85
|
85
|
75
|
135
|
Features:

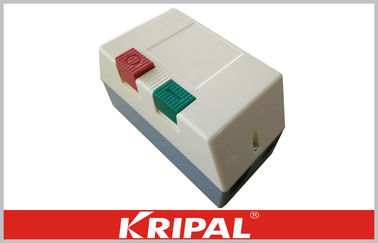

1. Sealed: Plastic coated, protection up to IP56;
2. Operation system with manual "START" and "STOP" buttons. With thermal overload relay consisting a invariable starter;
3. Install different accessories derive many kinds of other products;
4. Select UKC1 series contactor with standard 35mm rail, which can be fixed directly at the base of starter. Wires extracted from the three phase of the thermal overload relay can be inserted the three phase main contacts of the contactor, easy assembly and connection.
IEC utilization categories:
The current rating of the contactor depends on utilization category. Example IEC categories in standard 60947 are described as:
AC-1 - Non-inductive or slightly inductive loads, resistance furnaces
AC-2 - Starting of slip-ring motors: starting, switching-off
AC-3 - Starting of squirrel-cage motors and switching-off only after the motor is up to speed. (Make Locked Rotor Amps (LRA), Break Full Load Amps (FLA))
AC-4 - Starting of squirrel-cage motors with inching and plugging duty. Rapid Start/Stop. (Make and Break LRA) Relays and auxiliary contact blocks are rated according to IEC 60947-5-1.
AC-15 - Control of electromagnetic loads (>72 VA)
DC-13 - Control of electromagnets
About us:
KRIPAL ELECTRIC is specializing in R&D, manufacturing and selling low voltage electrical switchgears, such as industrial plug socket, circuit breakers, contactors, relays, switches, distribution boxes and other related products
Our factory with aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage
1. Certificates: CE, CB, Semko, SAA, TUV, UL, KEMA, ISO9001:2008
2. We have more than 25 years of manufacturing exporting experience
3. We have completely sales service system, ensures every detail is smooth
4. We have new designed products each year by our R&D Department
5. Perfect testing system ensures each product is qualified
6. We have a good reputation in UK, Spain, Germany, Australian, UAE, Turkey, Brazil, Colombia, HK, Singapore, Malaysia and other areas
