2P+E 3P+E 3P+N+E Nickel Industrial Power Outlet Appliance Inlet Sockets 63A

2P+E 3P+E 3P+N+E Nickel Industrial Power Outlet Appliance Inlet Sockets 63A
2P+E 3P+E 3P+N+E Nickel Industrial Power Outlet Appliance Inlet Sockets 63A

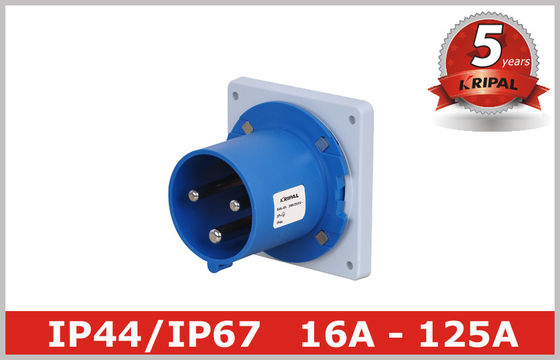

Large Image :  2P+E 3P+E 3P+N+E Nickel Industrial Power Outlet Appliance Inlet Sockets 63A

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKS-E series
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: Standard Exporting Package
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Detailed Product Description
Material: NYLON PA6, PC, Copper IP Protection: IP67
Pins Available: 3 Pins 4 Pins 5pins Voltage: 220V-250V, 380V-415V
Current Range: 63A,125A Frequency: 50/60 Hz
High Light:

Industrial Sockets And Plugs

,

Appliance Inlet



2P+E 3P+E 3P+N+E Nickel Industrial Power Outlet Appliance Inlet Sockets 63A




Highly heat resistant contact carrier, nickel plated contacts



In Europe, the most common range of heavy industrial plugs are made to IEC 60309 (formerly IEC 309) and various standards based on it (including BS 4343 and BS EN 60309-2). These are often referred to in the UK as CEE industrial, CEE form or simply CEE plugs.



Description:


This plug in equipment is of industrial grade and is developed to meet CEE specifications and is defined by un interchangeable of several types of equipment owing to particular instructions. Adding to this, the units of 230 V and 400 V voltages always have a shielded contact in the 6 H position (the number 6 is located in the face of the clock). Furthermore, the shielded contact is considerable thicker than the phase models, which makes it literally impossible to change any phase and hence a wrong connection.


Specifications:


Product

Industrial Plug

Rated current

63A

No. of poles

2P+E, 3P+E 3P+N+E

Voltage

220V-250V; 380V-4150V

Protection degree

IP44

Power type

Single Phase, Three Phase

Conductor cross-sectional area (mm2)

6-16

Material

NYLON PA6, PC, copper

Color

RAL5017 (Blue); RAL3000 (Red); RAL7000 (Cyan); RAL9018 (White).





Classification:



Industrial Plugs are available in P+N+E (unbalanced single phase with neutral), 2P+E (balanced single phase), 3P+E (3 phase without neutral), and 3P+N+E (three phase with neutral).



Current ratings available are 16A, 32A, 63A, 125A



Voltage and other characteristics are represented by a color code (in three-phase plugs the stated voltage is the phase-phase voltage, not the phase-neutral voltage). The different voltages have the earth pin of a larger diameter than the others, and located in different places depending on the voltage rating, making it impossible to mate.





Features:



  • Flawless locking
  • Ease of installation Screw terminals
  • Nickel-plated contacts
  • Highly heat resistant contact carrier
  • A retaining nose to hold the hinged lid of the connector must be provided by the customer in order to ensure satisfactory locking
