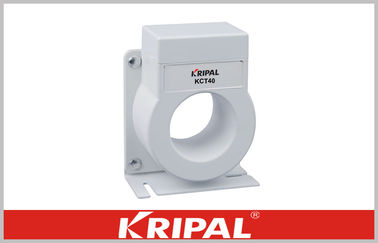

Power System Leakage Protection Zero Current Transformer 55mm 0.3A

Power System Leakage Protection Zero Current Transformer 55mm 0.3A
Power System Leakage Protection Zero Current Transformer 55mm 0.3A

Large Image :  Power System Leakage Protection Zero Current Transformer 55mm 0.3A

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: KCT55
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Detailed Product Description
Color: White Inner Dia: 55mm
Maxi Current Through Cable: 400A Mounting Thread Size: M4
Load Shift: Close To Zero Phase Shift: Close To Zero
High Light:

zero phase current transformer

,

Zero Sequence Current Transformer



Power System Leakage Protection Zero Current Transformer 55mm 0.3A





Description:



A zero-phase current transformer for use as a leakage current detecting element in a leakage current interrupter in which two magnetic materials of different permeability are provided so as to eliminate a range where the leakage current interrupter is inoperable without lowering its ability to distinguish noise components. The different magnetic materials may be provided as a single core constructed by mixing the materials of different permeability.



Otherwise, the materials can be provided as annually-shaped magnetic pieces stacked one on top of the other. Still further, the materials of different magnetic permeability may be provided as bands of materials interlude to form alternating layers or one of the materials may be provided as at least a portion of a protective case.





Applications:



Electric fire monitoring

Leakage protection system

Electromagnetic relaying protection

Microcomputer protection





Specifications:


It can be widely used in the relay protection area

Encapsulated with epoxy resin to ensure strong insulation ability

Various mechanical dimensions, highly customer-tailored

Linear output current, high precision

Small volume, light weight, easy for installation

Compact and delicate appearance

Suitable for single-phase electricity meter as well as anti-tampering electricity meter





Technical data:



Rated Frequency

50/60 HA

Accuracy Class

5P  10P

Rated Turns Ratio

1/210 (As customers' request)

Residual current input/output voltage

sensing parameters

Zero Phase (Primary/

Secondary)

Rated

Resistive Burden

300mA/80mV

56Ω

3A/80mV

5.6Ω

30A/80mV

0.5Ω

Rated primary current

0.3A

Rated accurancy limit primary current

3A/80mV

Accuracy limit primary ALF

10

Highest voltage for equipment

0.72kV

Rated power-frequency withstand voltage

3kV

Operating Temperatur

-20 to +45 degree







Dimension:



Power System Leakage Protection Zero Current Transformer 55mm 0.3A 0





Warranty:

2 years, any faulty items caused by KRIPAL willbe replaced freely.





OEM/ODM:

  Glad to say that there is planning department, technical department and mould tooling center in our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.





Samples: provided freely





KRIPAL Main products:



Rotary isolator switch, changeover switch, IP55 waterproof switch socket, IP66 weatherproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, mold case circuit breaker, AC contactor, thermal overload relay, industrial power distribution box and etc.
