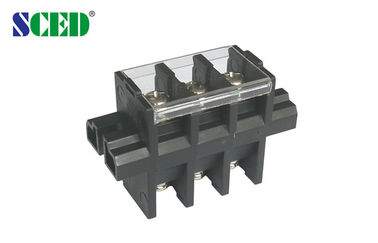

600V 101A Through Panel Terminal Block , 21.0mm Feed Through Terminal Connectors

600V 101A Through Panel Terminal Block , 21.0mm Feed Through Terminal Connectors
600V 101A Through Panel Terminal Block , 21.0mm Feed Through Terminal Connectors

Large Image :  600V 101A Through Panel Terminal Block , 21.0mm Feed Through Terminal Connectors

Product Details:
Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TD100-01-C
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Detailed Product Description
Type: Terminal Block Connector,Terminal Block Connectors, PCB Connectors Pitch: 21.0mm
Number Of Contacts: Any Poles Available Wire Range: 2-20
Rated Voltage: 600V Rated Current: 101A
Color: Black Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
High Light:

plug in terminal block connector

,

pcb terminal block connector


Detailed product Description:

600V 101A Through Panel Terminal Block, 21.0mm Feed Through Terminal Connectors Any poles available, Perforation Terminal Blocks
■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors





How to order:


600V 101A Through Panel Terminal Block , 21.0mm Feed Through Terminal Connectors 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 101

600 / 101

600 / 5

Wire Range                       AWG

2-20

2-20

2-20

IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

630 / 101

1000 / 101

1000 / 101

Rated Surge Voltage                 KV

6

6

6

Rated Connecting Capacity           mm2

25

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

11-12

Screw / Torque                    / lbf.in

M6 / 20-22







600V 101A Through Panel Terminal Block , 21.0mm Feed Through Terminal Connectors 1




Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
