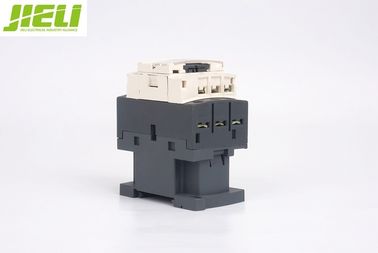

220V / 230V AC Magnetic 4 Pole Contactor Combinated With Thermal Relay

220V / 230V AC Magnetic 4 Pole Contactor Combinated With Thermal Relay
220V / 230V AC Magnetic 4 Pole Contactor Combinated With Thermal Relay

Large Image :  220V / 230V AC Magnetic 4 Pole Contactor Combinated With Thermal Relay

Product Details:
Place of Origin: Zhejiang,China(Mainland)
Brand Name: JIELI
Certification: CE/ISO9001/IEC60898-1
Model Number: JL-LC1-D18
Payment & Shipping Terms:
Minimum Order Quantity: 500pieces
Price: Negotiable
Packaging Details: Standard export carton or according to your request.
Delivery Time: Within 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability: 100000pieces per month.
Detailed Product Description
High Light:

telemecanique magnetic contactor

,

Electric Motor Contactor



JL-LC1-18 AC magnetic contactor combinated with thermal relay





Quick Detail:



Place of Origin: Zhejiang China (Mainland)

Brand Name: JIELI

Model Number: JL-LC1-D18

Electricity Type: AC magnetic contactor

Number of Pole: 3

Phase: 3

Main Circuit Rating Voltage: 220/230V, 380/400V, 415V, 500V, 660/690V

Main Circuit Rating Current: up to 150A

Standard: IEC60947-4-1

Rated working current: up to 150A

Rated working voltage: up to 690V

Type: New / Old type



Description:







JL-LC1-D series AC magnetic contactor is suitable for frequency 50Hz/60Hz, rated voltage up to 690VAC and rated current up to 150A.

JL-LC1-D series AC magnetic contactor is used for making/breaking electric circuit at a long distance & for frequent starting/stopping & controlling AC motors.

JL-LC1-D series AC magnetic contactor is used in combination with thermal relay to compose a magnetic motor starter.

JL-LC1-D series AC magnetic contactor complies with IEC60947-4-1 standard.



Specifications:







Type

LC1-D09

LC1-D12

LC1-D18

LC1-D25

LC1-

D32

LC1-

D40

LC1-

D50

LC1-

D65

LC1-

D80

LC1-

D95

Rated working current(A)

380V

AC3

9

12

18

25

32

40

50

65

80

95

AC4

3.5

5

7.7

8.5

12

18.5

24

28

37

44

660V

AC3

6.6

8.9

12

18

21

34

39

42

49

55

AC4

1.5

2

3.8

4.4

7.5

9

12

14

17.3

21.3

Rated heat current(A)

25

25

32

40

50

60

80

80

125

125

Controllable power(kW)

220/240V

2.2

3

4

5.5

7.5

11

15

18.5

22

25

380/400V

4

5.5

7.5

11

15

18.5

22

30

37

45

415V

4

5.5

9

11

15

22

30

37

45

45

500V

5.5

7.5

10

15

18.5

22

30

37

55

55

600/690V

5.5

7.5

10

15

18.5

30

33

37

45

55

Pole

3,4

3,4

3

3,4

3

3,4

3,4

3,4

3,4

3,4

Rated working voltage(V)

380,660

Rated insulation voltage(V)

660

Mechanical life x104

1000

1000

1000

1000

800

800

800

800

 600

 600

Electrical life

AC3x104

100

100

100

100

80

80

80

80

60

60

AC4x104

20

20

20

20

20

15

15

15

10

10

Operating frequency

Electrical life

AC3x104

1200

1200

1200

1200

600

600

600

600

600

600

AC4x104

300

Mechanical life x104

3600

Rated controlled voltage (V)

24-660

Working voltage

Close

DC%

0.85-1.1Us

Open

AC%

0.10-0.75Us



About our company-JIELI:







1. JIELI Electrical is abbreviation for" Alliance of JIELI Electrical Industry", with JIELI brand and ICEDC brand.

2. JIELI Electrical have 29 members and more than 2000 employers, all of the plants area are about 50000 square meters.

3. JIELI Electrical devoted in producing low-voltage circuit breaker and other related products. .

4.At present, JIELI main products MCB,MCCB,RCCB, Distribution box, AC contactor, Relay, Switch and more than thousands electrical goods spare parts.
