IEC60947 Moulded Case Circuit Breaker Breaking Capacity 70KA - 150KA

IEC60947 Moulded Case Circuit Breaker Breaking Capacity 70KA - 150KA
IEC60947 Moulded Case Circuit Breaker Breaking Capacity 70KA - 150KA

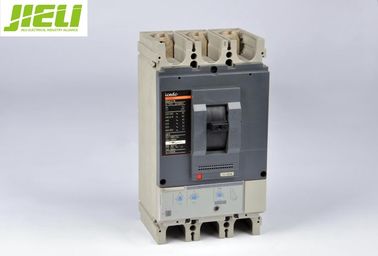

Large Image :  IEC60947 Moulded Case Circuit Breaker Breaking Capacity 70KA - 150KA

Product Details:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: JIELI
Certification: CE/ISO9001/CB/TUV
Model Number: JM2
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiable
Packaging Details: schneider moulded case circuit breaker Standard export cartons or according to the customer's requirements Packing quantity:20 pcs/carton Packing measurement:Carton40x26x20 cm /44x31x22cm/41x27x26cm/42x26.5x26cm N.W:25 KG/carton G.W:27KG/carton
Delivery Time: Within 10-30 days
Payment Terms: Payment Terms: L/C,D/A,D/P,T/T, Western Union, Cash
Supply Ability: 1000000 Piece/Pieces per Month
Detailed Product Description
High Light:

electric circuit breaker

,

low voltage circuit breaker



JM2 Schneider NS/NSX type mccb moulded case circuit breaker





Quick Detail:



Place of Origin: Zhejiang China (Mainland)

Brand Name: JIELI

Model Number:JM2-100N/3P(NS)

Type: Moulded Case Circuit Breaker,100,160,250,400,630D/N/H/L;1250D/N

Poles Number:3

Rated current of frame:100A-1250A

Breaking capacity:70KA-150KA

Certificate:CE

Standard:IEC60947



Description:





JM2 series Moulded case circuit breaker is one of new type breakers which this company adopts international advanced design, manufacture technology to develop.

The rated insulating voltage is 750V,suitable for AC 50Hz (60Hz),rated working voltage 690V or below, rated working current is 12.5 to 1250A of circuit and use in distributing electric energy.

Non frequent making and breaking in the normal conditions and protecting when circuit and installation

are overload, short circuit and under voltage.

Rated shell-rack and the breaker which current is under 400A,take protect effect when mouse cage

motor is non frequent start, breaking off working and protecting overload, short circuit and under voltage.





Specifications:







Specification

 NSX100

NSX160

NSX250

NSX00

 NSX630

Frame Current(A)

100

160

250

400

630

Number of Poles

3,4

3,4

3,4

3,4

3,4

Ultimate Breaking Capacity(Icu  KA)

F

H

F

N

H

F

N

H

F

N

H

F

N

H

AC220/240V(KA)

85

90

100

85

90

100

85

90

100

40

85

100

40

85

100

AC380/415V(KA)

36

50

70

36

50

70

36

50

70

36

50

70

36

50

70

Rated Insulation Voltage

AC800

Rated Working Vlotage

AC960

Rated Current ,Thermal Tripping, TMD

63,80,100

100,1245,150,160

200,220,250

300,400

630

Rated Current ,Electronic Tripping, TMD

400,100

400,100,160

100,160,250

250,400

250,400,630

Auxiliary, Alert, Fault Accessories

OF/SD/SDE/SDX

Shunt&Under Voltage Coil

MX/MN

Mechanical Life

50000

40000

20000

15000

15000

Electrical Life

30000

20000

10000

6000

4000

Installation type

Fixed



Competitive Advantage:







1. We offer you our best price with good quality of the materials.

2. We will deliver the materials strictly according to the the delivery date noted on the contract.

3. We also always have the huge ready stock for sell.

4. We have advanced equipments for the tests.

5.We have complete after-sale service to deal with the problems in time.

6. Wooden case package which is strong and suitable for sea transportation is our main method to

pack the pipes. And the economical packing method such as packing in bundles.
