Pressure Switch, Waterproof Membrane Switch, LCD Window Devices, â‰¤50V DC Operating Voltage

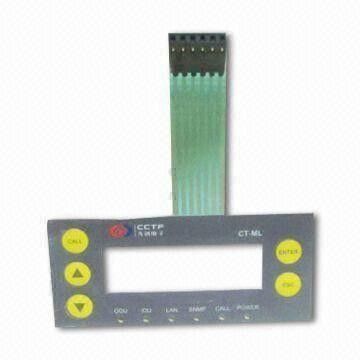

تصویر بزرگ : Pressure Switch, Waterproof Membrane Switch, LCD Window Devices, â‰¤50V DC Operating Voltage

جزئیات محصول:

Place of Origin:	china
Model Number:	JYJ-3023
MOQ:	100 to 199 Pieces
Main Export Markets:	Eastern EuropeNorth AmericaMid East/AfricaCentral/South AmericaAsiaWestern EuropeAustralasia
Certs:	SGS
Lead Time:	5-7days
Category:	Pressure Switches

پرداخت:

Minimum Order Quantity:	100 to 199Pieces
Payment Terms:	Cash/Bank Transfer/T/T

مخاطب

توضیحات محصول جزئیات

Key Specifications/Special Features:

Specifications:
- Operating temperature: -20 to +70°C
- Storage temperature: -40 to +85°C
- Humidity: 40 C, 90 to 95% RH, 240 hours
- Size deviation: ±0.15mm
- Side boundary: ≤0.1mm
Features:
- Membrane switch is composite switch, made of insulating material layers and conductive layers
- It becomes the first choice for the electric control switch for its unique superiority
- Good appearance, small volume, long lifespan and bend resistance make the membrane switch popularly accepted
- Also, it has strong resistances against the water, fire, oil and scratch
- Hereby, the basic parameters of it are presented
Technical datas:
- Electrical performance
- Operating voltage: ≤50V DC
- Operating current: ≤100mA
- Contact resistance: 0.5 to 10Ω
- Insulation resistance: ≥100MΩ (100VDC)
- Base material withstand: 2kDVC
- Contact bounce: ≤6ms
- Loop resistance: 50Ω, 150Ω, 350Ω or as per clients' requirement
Mechanical properties:
- Life expectancy: one million times
- Switch stroke:
  - 0.1 to 0.4mm (flat type)
  - 0.4 to 1.0mm (tactile type)
- Actuation force: 15 to 750g
- Flex tail pitch (standard): 2.54/2.50/1.27/1.25mm
