Pitch 7.5mm 300V 15A Female Pluggable Terminal Block Connector 2P-16P

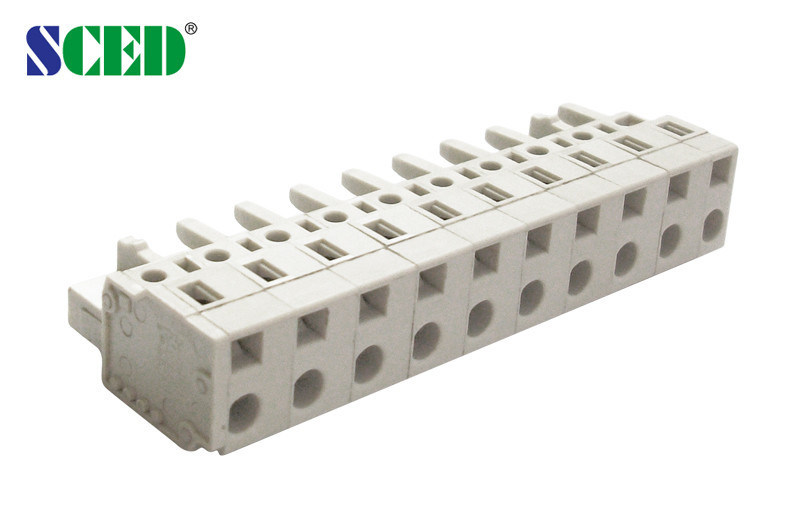

تصویر بزرگ : Pitch 7.5mm 300V 15A Female Pluggable Terminal Block Connector 2P-16P

جزئیات محصول:

Place of Origin:	Shenzhen, China
نام تجاری:	SCED
گواهی:	UL, CE
Model Number:	TP508P-75

پرداخت:

Minimum Order Quantity:	500
قیمت:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T
Supply Ability:	1KK poles each monthly

مخاطب

توضیحات محصول جزئیات

Type:	Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks	Pitch:	7.5mm
Wire Range:	14-16	Rated Voltage:	300V
Rated Current:	15A	Color:	Green
Applications:	PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control	Level:	Single Level
برجسته کردن:	barrier terminal block connector,pcb terminal block connector

Detailed product Description:

Pitch 7.5mm 300V 15A Female Pluggable Terminal Block Connector 2P-16P

■Single Level; □Double Levels; □Triple Levels

This female plug match with male sockets’ series: TP508H-75, TP508H-75V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:

Pitch 7.5mm 300V 15A Female Pluggable Terminal Block Connector 2P-16P 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 15
Wire Range AWG	14-16
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 15	320 / 15	630 / 15
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Spring Clamp	Stainless Steel
Terminal / Plating	Phosphor Bronze / Tin Plated
Other Data
Stripping Length mm	10-11

Pitch 7.5mm 300V 15A Female Pluggable Terminal Block Connector 2P-16P 1

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
