Water Resistant Housing IP67 Truck Circuit Breaker 25A , 30A , 40A

Name: Water Resistant Housing IP67 Truck Circuit Breaker 25A , 30A , 40A
Brand: VICTOR
SKU: E53
Rating: 4.6 (149 reviews)

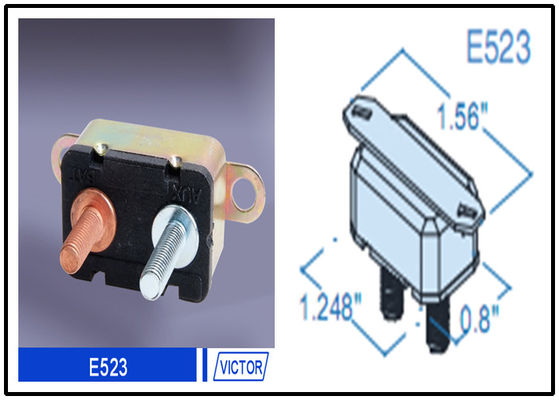

Large Image : Water Resistant Housing IP67 Truck Circuit Breaker 25A , 30A , 40A

Product Details:

Place of Origin:	CHINA
Brand Name:	VICTOR
Certification:	UL,C-UL,ROHS,REACH
Model Number:	E53

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Packaging Details:	Packed in carton
Delivery Time:	15 work days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	3,00000pcs per month

Contact Now

Detailed Product Description

Product Name:	Truck Circuit Breaker	Protection Class:	IP67
Rated Operating Temperature:	25°F(32°C)to180°F(82°C)	Rated Storage Temperature:	30°F(34°C)to300°F(149°)
Terminal:	10-32 Thread And Quick-connector Available	Torque Rating:	24in-lb(2.7Nm) Max
Interrupt Rating:	2.5KA @ 12VDC(T1& T1-28VDC, SEALED & T3)	Rating:	5-50A, 14VDC, 28VDC(For T2 And T3)
Standard:	SAEJ1625;ABYCE-11;CE;SAE;J1171
High Light:	15 amp circuit breaker , 30 amp circuit breaker

Detailed Product Descripition:

Water Resistant Housing Truck Circuit Breaker Use With Wiring Products

Type	Automtic operated electrical switch
Function	Protect an electrical circuit from damage caused by overload or short circuit Detect a fault condition and interrupt current flow
Contrast with fuse	Fuse must be replaced once operated while a circuit breaker can be reset (either manually, modefied or automatically) to rsume normal operation
Mounting	Mounted by stud or bracket, and it will be reset automatically.
Current & Voltage Ratings	5-50A, 12-28V
Number of pole	Single pole,Normal Closed
Category	Circuit Breakers
Series	12X
Mounting	Stud or bracket mount
Terminals	#10-32 Studs
Reset Type	Automatic/Modefied/Manual
Voltage	12-24VDC
Standards	SAE J553/SAE j1171
Amps	5-50A
Brand	VICTOR
Item	Stud type circuit breaker
Number of poles	1
Reset Method	Type I - Automatic
Outside	Plastic housing cover

Quick Detail:

Terminal: A, B, C, D, E, H, J, K, L
Stud:10-32''(max.5A)
Quick Connector: 0.25''(max.30A)
100% 150% 200% 300%
Less Than 25A >1800s <600s 5-40s 2-8s
Over 30A >1800s <600s 15-70s 4-12s

Description:

Spection: Single Poole Thermal Typer Breakers
Rating: 5-50A, 14VDC, 28VDC(For T2 and T3)
Interrupt Rating:(branch circuit production): 2.5KA @ 12VDC(T1& T1-28VDC, SEALED & T3)
Operating Temperature Rating: -40F(-40C) to 185F(85C)
Storage Temperature Rating: -40F(-40C) to 260F(125C)
Materials: Black UL rate thermoplastic body, (thermo set for T2 body & button)
Cover is gray thermoplastic or steel, T1-gold, T2-Silver
Marking: Custom marking available. Consult factory for option
Terminal: #10-32 thread and quick-connector available
Torque rating: 24in-lb(2.7Nm) max

Feature/Benefits:

1. Insensitive to momentary overload

2. Self-resetting characteristics

3. Cprotect safety to critical area

Applications:

1. Battery charger protect

2. RVs and marine systems

3. Circuit protect
