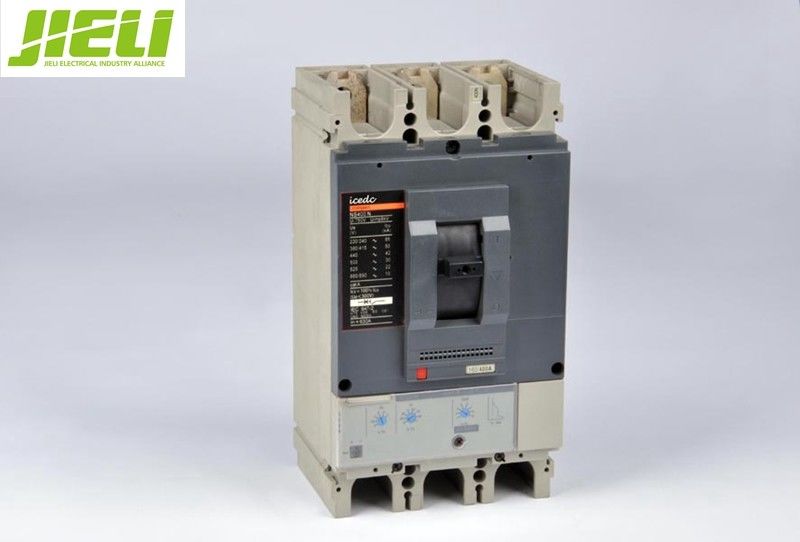

JM2 Schneider NS/NSX type mccb moulded case circuit breaker
Quick Detail:
Place of Origin: Zhejiang China (Mainland)
Brand Name: JIELI
Model Number:JM2-100N/3P(NS)
Type: Moulded Case Circuit Breaker,100,160,250,400,630D/N/H/L;1250D/N
Poles Number:3
Rated current of frame:100A-1250A
Breaking capacity:70KA-150KA
Certificate:CE
Standard:IEC60947
Description:
JM2 series Moulded case circuit breaker is one of new type breakers which this company adopts international advanced design, manufacture technology to develop.
The rated insulating voltage is 750V,suitable for AC 50Hz (60Hz),rated working voltage 690V or below, rated working current is 12.5 to 1250A of circuit and use in distributing electric energy.
Non frequent making and breaking in the normal conditions and protecting when circuit and installation
are overload, short circuit and under voltage.
Rated shell-rack and the breaker which current is under 400A,take protect effect when mouse cage
motor is non frequent start, breaking off working and protecting overload, short circuit and under voltage.
Specifications:
|
Specification |
NSX100 |
NSX160 |
NSX250 |
NSX00 |
NSX630 |
||||||||||
|
Frame Current(A) |
100 |
160 |
250 |
400 |
630 |
||||||||||
|
Number of Poles |
3,4 |
3,4 |
3,4 |
3,4 |
3,4 |
||||||||||
|
Ultimate Breaking Capacity(Icu KA) |
F |
N |
H |
F |
N |
H |
F |
N |
H |
F |
N |
H |
F |
N |
H |
|
AC220/240V(KA) |
85 |
90 |
100 |
85 |
90 |
100 |
85 |
90 |
100 |
40 |
85 |
100 |
40 |
85 |
100 |
|
AC380/415V(KA) |
36 |
50 |
70 |
36 |
50 |
70 |
36 |
50 |
70 |
36 |
50 |
70 |
36 |
50 |
70 |
|
Rated Insulation Voltage |
AC800 |
||||||||||||||
|
Rated Working Vlotage |
AC960 |
||||||||||||||
|
Rated Current ,Thermal Tripping, TMD |
63,80,100 |
100,1245,150,160 |
200,220,250 |
300,400 |
630 |
||||||||||
|
Rated Current ,Electronic Tripping, TMD |
400,100 |
400,100,160 |
100,160,250 |
250,400 |
250,400,630 |
||||||||||
|
Auxiliary, Alert, Fault Accessories |
OF/SD/SDE/SDX |
||||||||||||||
|
Shunt&Under Voltage Coil |
MX/MN |
||||||||||||||
|
Mechanical Life |
50000 |
40000 |
20000 |
15000 |
15000 |
||||||||||
|
Electrical Life |
30000 |
20000 |
10000 |
6000 |
4000 |
||||||||||
|
Installation type |
Fixed |
||||||||||||||
