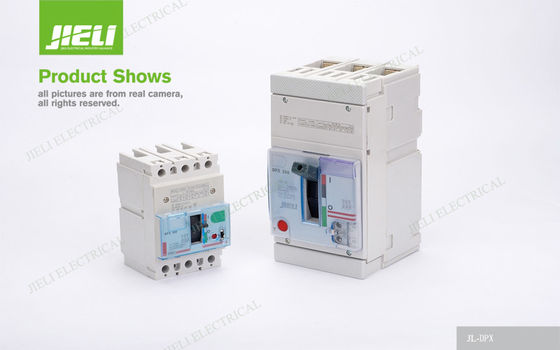

Household Safety Moulded Case Thermal Circuit Breaker Adjustable 100A 160A 250A

Household Safety Moulded Case Thermal Circuit Breaker Adjustable 100A 160A 250A

Quick Detail:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: JIELI
Model Number: JL-DPX
Type: Moulded Case
Poles Number: 2,3,4
Contacts: Silver/Copper
Specification: JL-DPX 4P
Name: Schneider moulded case circuit breaker
Frequency: 50/60Hz
Color: white, black
Quality: Stable and reliable
Guarantee: 5 years warranty
Certificate: CE/ISO9001/CB/TUV
Rated operating current: 12.5A,16A,25A-63A,80A,100A,125A-630A,800A,125.A,1600A
Rated voltage: AC690V,750V(DC)

Description:

- Simple introduction for our DPX Moulded Case Circuit Breaker mccb


DPX series of Moulded Case Circuit Breaker(MCCB) employed the latest current-limiting theory and manufacture  technology.

The advantages of Moulded Case Circuit Breaker are as follows: compact structure, completed modularity, high breaking capacity and zero flashover etc. The rated insulation voltage is750V, adopted suitably in alternating current 50/60Hz.This series Moulded Case Circuit Breaker can prevent circuit and E-type compact power supply equipment from being damaged, with overload, short circuit and under voltage protective devices.


-Working environment for Moulded Case Circuit Breaker mccb circuit breaker
The working conditions of this type Moulded Case Circuit Breaker are as follows: under the altitude of 2000 meters; between the -25 and 70 Celsius (equipment must be derated while the temperature is higher than 65 Celsius);Moulded Case Circuit Breaker can withstand damp air, salt fog and other atrocious weather.

Applications:

The rated insulation voltage of Moulded Case Circuit Breaker is 690V, suitable for the circuit with AC 50Hz(60Hz), the rated working voltage of 550V and below, and the rated operating current up to 400A, which will be used for distributing electrical energy. The Moulded Case Circuit Breaker is equipped with overload and short circuit protection device, so as to protect the circuit and power equipment from damage.

Specifications:

Competitive Advantage:

1. Simple in design
A. Including 2P, 3P, 4P;
B. The full range of products covers only four kinds of frame sizes, which will be convenient for future expansion and upgrading;
C. Comprehensive range of protection, including low-voltage distribution protection, motor protection and leakage protection.
2. Simple to install
A. Various accessories can be installed on the site;
B. The position of installation is flexible, which can be installed in the vertical, horizontal, side or back way, and the product function is unaffected;
