Commercial 400CFM K Style 4 - Way Cassette Fan Coil Unit FP - 68KM HVAC FCU

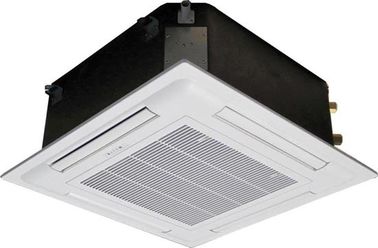

Large Image : Commercial 400CFM K Style 4 - Way Cassette Fan Coil Unit FP - 68KM HVAC FCU

Product Details:

Place of Origin:	China
Certification:	ISO
Model Number:	FP-68KM

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Wooden case/carton case
Delivery Time:	25~30days
Payment Terms:	TT, LC
Supply Ability:	20000pcs per year

Contact Now

Detailed Product Description

Product Name:	4-Way Cassette Fan Coil Unit	Application:	HVAC Sysem
Cooling Capacity:	400CFM / 680m3/h	Fluid:	Chilled Water/hot Water
System:	Two Pipe System	Power Supply:	220V/1PH/50Hz
Drain Pump:	Equipped Inside	Controller:	Remote Control
Highlight:	cassette fan coil unit

K Series 4-Way Cassette Fan Coil Unit FP-68KM, 400CFM, HVAC system FCU

Specifications:

Model					FP-68KM
Air Volume		High		m3/h	680
		Middle			540
		Low			400
External static pressure				Pa	0
Power supply					220V/1PH/50Hz
Cooling capacity	TH		H	W	3600
	SH				2790
	TH		M	W	3080
	SH				2186
	TH		L	W	2700
	SH				1743
Heating capacity	H			W	5400
	M			W	4375
	L			W	3751
Noise lelvel	High speed			dB(A)	41
Power input				W	62
Water flow				m3/h	0.62
Pressure drop				KPa	22.1
Inlet/outlet water pipe connection					ZG3/4”
Coil	Type				Copper tubes with hydrophilic aluminium fins
Max.working pressure				MPa	1.6
Drain water pipe connection				mm	Ф26
Dimensions (LWH)		Unit(drained by pump)		mm	570570290
		Panel		mm	65065045
Net weight(drained by pump)				kg	23

Description:

1. 4-way air flowing, which can uniform temperature distribution in the room;
2. Thin design unit, which can be installed in a limit ceiling,(the min. thickness is 290mm);
3. Easy to be installed, low installation cost;
4. Remote controller is standard and wire controller is optional;
5. Auto swing: using advanced 3D software to design the centrifugal fan with streamline and big diameter turbin;
6. High lift water drained pump(750mm), easy to plan the condensate drained pipe;
7. Float switch inside to prevent from leaking;
8. K style cassette fan coil unit can maintain the pump and water level switch from the external of unit, can be easily examine and repair the pump as long as just remove 4 screws;

Applications:

1. Commercial buildings: Star hotels, restaurants, office buildings, schools, supermarkets, shopping mall, entertainment centers,theaters,etc
2. Public places: Airports, stations, exhibition halls, stadiums, museums, convention centers, church,etc

Commercial 400CFM K Style 4 - Way Cassette Fan Coil Unit FP - 68KM HVAC FCU 0
