standby diesel generator

1, Brand Name :CAT-parts-parts Olympian

2, Circuit Breaker Type:3 Pole MCCB

3, Cycle:  4 Stroke

4, Cooling Method:  Water

5, Governing Type:  Electronic

6, Output Type: AC Three Phase

7,Base Frame Type:Heavy Duty FabriCAT-parts-partsed Steel

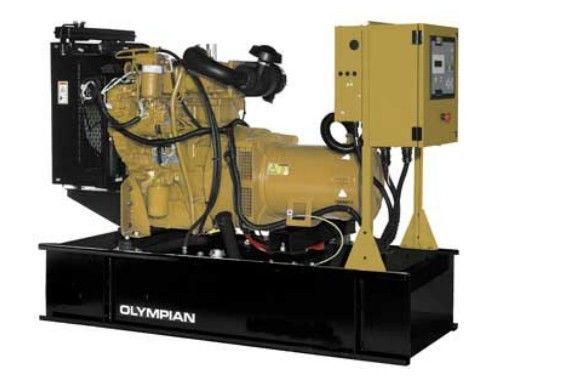

CAT-parts-parts Olympian Genset Diesel Generator , Water Cooled

FEATURES

GENERATOR SET

● Complete system designed and built at ISO 9001

   certified facility

● Factory tested to design specifiCAT-parts-partsions at full

   load conditions

● Fully engineered with a range of options and

   accessories

ENGINE

● Industrial water cooled diesel engine

● Isochronous electronic speed control

● Governor, electronic

● Electrical systems, 24 VDC

● Cartridge type fuel and oil filters

● Air filter

● Lube oil drain valve

● Battery(ies), rack and cables

GENERATOR

● Self excited brushless generator

● Insulation system, class H

● Drip proof generator air intake (IP23)

● Electrical design in accordance with BS5000

   Part 99, IEC60034-1, VDE0530, UTE5110

CONTROL SYSTEM

● 2001 Keystart control panel

● PowerWizard 1.0 control panel

● Vibration isolated sheet steel enclosure with

   hinged lockable door

MOUNTING ARRANGEMENT

● Heavy-duty fabriCAT-parts-partsed steel base with lifting points

● Anti-vibration pads to ensure vibration isolation

● Generator coupled to engine by flexible

   disc-coupling

● Baseframe incorporates heavy-duty fabriCAT-parts-partsed

   steel fuel tank, 8 hours running capacity

EXHAUST SYSTEM

● Heavy duty industrial capacity exhaust silencer

(approximately 10 dBA reduction) supplied loose

COOLING SYSTEM

● Standard ambient temperature up to 50 ℃(122℉)

● Fan, fan drive and charging alternator fully

guarded

● Coolant drain valve

● Antifreeze protection coolant

CIRCUIT BREAKER

● 3-pole molded case circuit breaker (MCCB)

● Vibration isolated sheet steel enclosure with

removable cover plate

● Outgoing cable stub-up area directly below

circuit breaker

AUTOMATIC VOLTAGE REGULATOR

● Voltage regulation ±0.5%

● Provides fast recovery from transient load changes

EQUIPMENT FINISH

● All electroplated hardware

● Anticorrosive paint protection

● High gloss polyurethane paint for durability

and scuff-resistance

QUALITY STANDARDS

● BS4999, BS5000, BS5514, IEC60034, VDE0530

DOCUMENTATION

● Operation and maintenance manuals provided

● Wiring diagrams included

WARRANTY

● All equipment carries full manufacturer’s

warranty

SPECIFICAT-parts-partsIONS

ENGINE

Manufacturer .....................................................................Perkins

Model....................................................................2506A- E15TAG1

Type...................................................................................4 Stroke

Aspiration ....................Turbocharged Air-to-Air Charge Cooled

Cylinder configuration........................................................In-line 6

Displacement — L (cu in) .......................................15.2 (927.6)

Bore/Stroke — mm (in) .............................135 (5.3)/167 (6.6)

Compression ratio ...............................................................16.0:1

Engine speed (rpm) ..............................................................1,500

Maximum power at rated rpm — kW (hp)

50 Hz Standby..................................................1643.0 (2,203.0)

BMEP — kPa (psi)

50 Hz Standby.....................................................2471 (358.4)

Regenerative power — kW ..................................................120.0

Governor

Type............................................................................Electronic

Class.......................................................................ISO 8528 G2

GENERATOR

Manufacturer .................................................................Olympian

Model ...............................................................................LL6114D

Type .......................................................................Self-excited,brushless

Voltage regulation................................ ±0.5% at steady state from no load to full load

Frequency………. ...............................  ±0.25% for constant load from no load to full load

Waveform distortion.....................................................THD<2%

Radio interference… ................................................compliance with EN61000-6

Telephone Interference   ................................................................  TIF<50,THF<2%.

Overspeed Limit ............................................................................ 2250 rpm

Total harmonic content LL/LN ..............................................2.5%

Temperature rise    ...........................................................   Within Class H limits
