4 Pole MCCB Low Voltage Power Moulded Case Circuit Breaker For Motor Protection

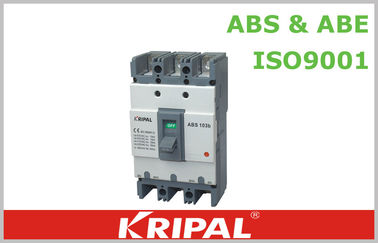

Large Image : 4 Pole MCCB Low Voltage Power Moulded Case Circuit Breaker For Motor Protection

Product Details:

Place of Origin:	China
Brand Name:	KRIPAL
Certification:	CE
Model Number:	ABS103

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	negotiable
Packaging Details:	Each unit packed in a individual box
Delivery Time:	20 days and depends on ordering quantity
Payment Terms:	T/T, L/C
Supply Ability:	30000 pcs per month

Contact Now

Detailed Product Description

Ampere Range:	10A,15A,20A,30A,40A,50A,60A,75A,100A	Poles Available:	2pole 3 Pole 4 Pole
Certificate:	CE	Purpose:	For Protection Of Power Distribution
Trip Unit:	Thermal Magnetic	Warranty:	2 Years
Highlight:	Earth Leakage Circuit Breaker

4 Pole MCCB Low Voltage Power Moulded Case Circuit Breaker For Motor Protection

Description:

ABS/ABE seriesmotor protection circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.

Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor.

It can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage.

The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.

Specifications:

Type	2pole	AB-52E	AB-52S	AB-62E	AB-62S	AB-102E	AB-102S	AB- 203E	AB- 203S	AB- 403E	AB- 403S
Type	3pole	AB-53E	AB-53S	AB-63E	AB-63S	AB-103E	AB-103S	AB- 203E	AB- 203S	AB- 403E	AB- 403S
Frame size(AF)		50		60		100		225		400

Rated operational voltage(V)Ue (50/60Hz)		600	600	600	600	600	600	600	600	600	600
Rated insulation voltage(V)Ui(50/60Hz)		690	690	900	900	690	690	690	690	690	690
Rated impulse withstand voltage(KV)Uimp		6	6	6	6	6	6	6	6	6	6
Uitimate breaking capacity (KA,Icu AC 50/60Hz)	220V/240V	10	25	10	25	10	50	35	50	35	50
	380V	7.5/5	14/10	7.5/5	14/10	7.5/5	25	18	25	30	42
	415V	7.5/5	14/10	7.5/5	14/10	7.5/5	25	18	25	25	35
	440/460V	5	10	5	10	5	25	18	25	25	35
	480/500V	2.5	7.5	2.5	7.5	2.5	25	10	14	18	25
	600V	2.5	5	2.5	5	2.5	14	7.5	10	18	22

Wiring:

The wiring method has four ways wiring in front of the board, wiring on back of the board, insertion type in front of the board and insertion type on back of the board.

Inverse time lag characteristic of circuit breaker for distribution

Name of test current	Times of rated current	(h)Conventional time			Intial state
Name of test current	Times of rated current	Inm≤40	40<In≤250	In>250	Intial state
Conventional non-tripping current	1.05	≥1h	≥2h	≥2h	Cold
Conventional tripping current	1.3	<1h	<2h	<2h	Thermal
Returnable time	3	Current of returning characteristic	Current of returning characteristic	Current of returning characteristic	Cold
Returnable time	3	5s	8s	12s	Cold

Environmentally-friendly

A. The ABS/ABE series MCCB does not contain any noxious or hazardous substances, and its manufacturing and processing processes are performed in accordance with the requirements of the ISO 14001.

B. Environmentally-protective materials are used in the course of distribution.

C. Low temperature rise, low power consumption, and minor influences to the surrounding environment during operation.

D. Over 80% o f its component materials can be recycled and reused at the end of its service life.

Modularized Design:

Circuit breakers: For the same frame size MCCB, the dimension is the same whatever the breaking capacity, rate current is

Accessories: The users may select accessories randomly as per their demands and expand the functions of the circuit breakers.
