Product Details:
Payment & Shipping Terms:
|
Ampere Range: | 250A,300A,350A,400A | Poles Available: | 3 POLE |
---|---|---|---|
Certificate: | CE | Purpose: | For Protection Of Power Distribution |
Trip Unit: | Thermal Magnetic | Warranty: | 2 Years |
Highlight: | Earth Leakage Circuit Breaker |

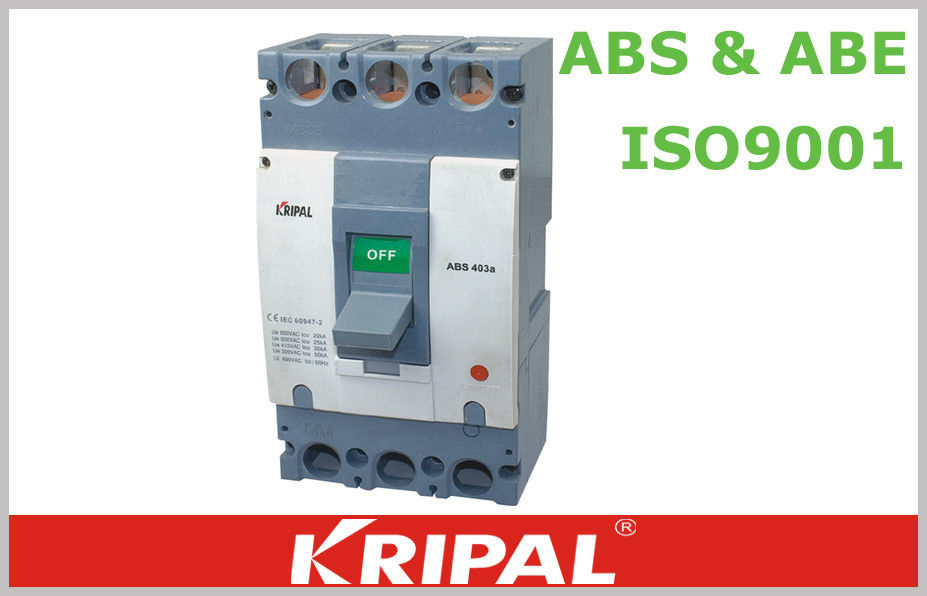

250/300/350/400A ABS Overload Protection Molded Case Circuit Breaker 3 Pole MCCB ABS403
ABS/ABE seriesmotor protection circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.
Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor.
It can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage.
The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.
Specifications:
Model | ABE 400 | ||
Rated current In(A) 40℃ (standard ambient temperature 40℃) |
250,300,350,400 | ||
Poles | 3 | ||
Max rated service voltage Ui(V) | AC | 600 | |
DC | 250 | ||
Breaking capacities(KA) | AC(Relative Asymmetry/symmetry value) GB14048-2 | 500V 600V | 22 |
440V 480V | 35 | ||
380V | 42 | ||
220V 240V | 50 | ||
IEC60947-2 Icu AC |
500V | 22 | |
440V | 35 | ||
415V | 35 | ||
380V | 42 | ||
240V | 50 | ||
DC | 250V | 30 | |
125V | 20 | ||
Connection method | Pressed terminal | ||
Automatic tripping device | Thermal electromagnetic type | ||
Trip button | YES |
Dimensions and mounting details:
Benefits
1.Reduce energy and operations costs
2.Improve power quality, reliability and uptime
3.Optimize equipment use
Applications
1.Building: Hotels, hospitals, offices and retalis
2.Data center and Networks
3.Industry: Mining and minerals, automotive, food and beverage and chemical industry
4.Energy and infrastructures: Airports, oil and gas, water, electrical energy and marine
Normal application environment:
Altitude ≤ 2000m
Ambient temperature -5~+40
Tolerance of the influence of humid air.
Tolerance of the influence of salt mist and oil mist.
Maximal gradient is 22.5
Kept in the media without explosive hazard.
There is no conductive dust or gas which is able to erode metal or destroy insuation
Kept in the place where no sleet will attack.
Service
1. Delivery time: 20 working days for bulk order and depend on ordering quantity
2. Strong production capacity and strict quality control system;
3. Your inquiry and problems related to our products or prices will be replied in 24 hours;
4. Well-trained and experienced staffs to answer all your inquires;
5. After-sale tracking service for all of our clients;
6. OEM & ODM are available; there is an our own mould tooling center in KRIPAL factory.
7. Payment: usually L/C, T/T,
8. Delivery way: Courier as door to door service (like DHL, TNT), by sea, by air (airport to airport)
