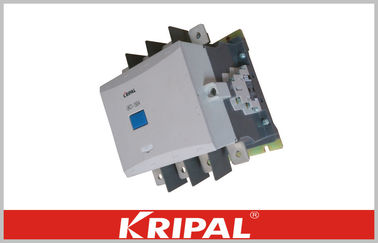

Power saving Air Conditioning Contactors 4 Pole AC Contactor 125A 150A

Power saving Air Conditioning Contactors 4 Pole AC Contactor 125A 150A
Power saving Air Conditioning Contactors 4 Pole AC Contactor 125A 150A Power saving Air Conditioning Contactors 4 Pole AC Contactor 125A 150A

Large Image :  Power saving Air Conditioning Contactors 4 Pole AC Contactor 125A 150A

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Detailed Product Description
Brand: KRIPAL Current Range: 100A 125A 150 A 180A 220A
Poles: 4P Contacts: Silver Ag
Coil: AC/DC
High Light:

Definite Purpose Contactor

,

Heat Pump Contactor



Power saving Air Conditioning Contactors 4 Pole AC Contactor 125A 150A





Description:



Magnetic AC Contactor should have the high current value without being exposed to and damaged or boiling. This belongs to the quality of contactor. (Contact surface quality and weld technology) Especially at AC-3 and capacitor command, selectivity of contactor is very important.



Current which passes through the contacts causes warming when the contactor is closed. This warming is limited with the standards. For IEC60947-4-1 when continual thermal current (Ith) is passed though the main contacts, maximum increasing temperature should not exceed 65k.





Characteristics:



1. 3 pairs of main contacts: 85% Ag



2.  Enclsoure: fire- retardant



3. Button: resin (bearing temperature more thant 250 degree)


2. Fixed by screw


3. AC/DC coil


4. Wide coil voltage


5. Be connected with the thermal overload relay directly





Specifications:



Model

UKC1-100

UKC1-125

UKC1-150

UKC1-180

UKC1-220

Rated operational current

Ie max AC-3

105A

125A

150A

180A

220A

Ie AC-1

150A

150A

200A

230A

260A

Rated operational power in AC-3

220/240V

30KW

37KW

45KW

55KW

75KW

380/400V

55KW

60KW

75KW

90KW

132KW

415/440V

55KW

60KW

75KW

90KW

132KW

500V

55KW

60KW

90KW

110KW

132KW

660/690V

55KW

60KW

90KW

110KW

132KW

Thermal overload relays

class 10A

34...125A

34...125A

34...150A

65…240A

65…240A

class 20A

34...125A

34...125A

34...150A

65…240A

65…240A





Special Features:



AC/DC contactor:
Contactor applications: remote making and breaking circuits
AC/DC contactor protects circuit from overloading when assembling thermal overload relay
Frequent start-up and control:
Contactor electric ratings: AC 50/60Hz, 690V, up to 95A
Utilization category: AC-3, AC-4
Altitude: ≤2000m
Ambient temperature: -5-40º C
Mounting category: III
Mounting conditions: inclination between mounting plane
Vertical plane should not exceed ±5°
Standards for AC contactor: IEC/EN 60947-4-1. IEC/EN 60947-5-1





Advantages:



1. Power saving: 5% of traditional power consuming.

2. Long life: short arc duration, little contactor ablation, contactor does not quiver when voltage fluctuates.

3. Reliable coils will not be burnt which are reeled in our own workshop

4. No noise during working

5. There is no temperature rising in the coil control.

6. Not influenced by network voltage fluctuation.

7. Plastic are fire-retardant and the button is resin which can bear temperature more than 200 degree Celsius





Special requirements?



Our project engineers are here to understand the special requirements of your project and assist to develop a solution as a partner.

Should your requirements not be covered by our extensive standard product range we have our own R&D and mould tooling center for special switches in order to flexibly, promptly and cost effectively meet your individual requirements.



Just let us know your ideas, and we will show you a great solution.
