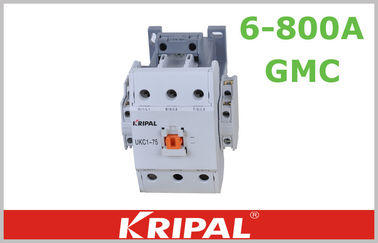

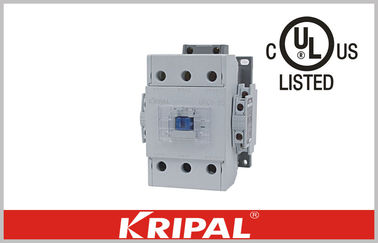

65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals

China 65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals supplier
65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals supplier 65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals supplier 65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals supplier 65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals supplier 65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals supplier

Large Image :  65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals

Product Details:

Place of Origin: China
Brand Name: KRIPAL
Certification: CE, UL
Model Number: UKC1 series

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Brand: KRIPAL Current Range: 9A,12A,18A,22A,32A,40A,50A,65A,75A,85A
Poles: 3P Auxiliary: 1NO+1NC Or 2NO+2NC
Contacts: Silver Ag Coil: AC / DC



GMC 9~ 85A 3 Pole AC/DC Air Conditioner Magnetic Contactor Switch with UL Approvals Optional accessories







Description:



GMC series AC contactor is suitable for using in the circuits up to rated voltage 660V AC 50/60HZ, rated current up to 800A, for making, breaking, frequently starting & controlling the AC motor and it can be combined with the auxiliary contacts, mechanical interlocking unit, switchover capacitor and etc. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC947-2, VDE0660 & BS5452.



UKC1-9 (9A) 3P

65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals

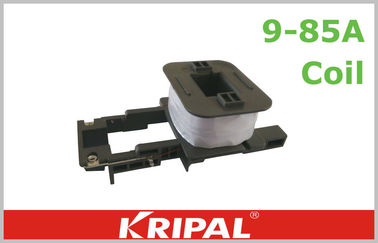

Optional accessories:

65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals





UKC1-40(40A) 3P

65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals



Optional accessories:

65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals



UKC1-85 (85A) 3P

65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals



Optional accessories:

65A 75A 3 Pole Air Conditioner Magnetic Contactor Switch with UL Approvals







IEC utilization categories



The current rating of the AC/DC contactor depends on utilization category. Example IEC categories in standard 60947 are described as:



AC-1 - Non-inductive or slightly inductive loads, resistance furnaces

AC-2 - Starting of slip-ring motors: starting, switching-off

AC-3 - Starting of squirrel-cage motors and switching-off only after the motor is up to speed. (Make Locked Rotor Amps (LRA), Break Full Load Amps (FLA))

AC-4 - Starting of squirrel-cage motors with inching and plugging duty. Rapid Start/Stop. (Make and Break LRA)





Characteristics



1. The cover for preventing electrical shock on the top of ac contactor and thermal overload relay



2. The ac contactor and relay are classified into 3 frame sizes according to the external dimensions



3. AC Contactor and relay can be connected directly without other fittings



4. Installed by screws or on the 35mm DIN rail directly





Specifications:



Type

AC3 duty

Life time(x 104)

Aux. contact

200~240V

380~440V

500~550V

690V

Electrical

Mechanical

UKC1-9

2.5kW 11A

5kW 9A

4kW 7A

4kW 5A

250

2500

1NO1NC

UKC1-12

3.5kW 13A

5.5kW 12A

7.5kW 12A

7.5kW 9A

250

2500

UKC1-18

4.5kW 18A

7.5kW 18A

7.5kW 13A

7.5kW 9A

250

2500

UKC1-22

5.5kW 22A

11kW 22A

15kW 22A

15kW 18A

250

2500

UKC1-32

7.5kW 32A

15kW 32A

18.5kW 28A

18.5kW 21A

200

1500

2NO2NC

UKC1-40

11kW 40A

18.5kW 40A

22kW 32A

22kW 25A

200

1500

UKC1-50

15kW 55A

22kW 50A

30kW 43A

30kW 33A

200

1000

UKC1-65

18kW 65A

30kW 65A

37kW 60A

37kW 47A

200

1000

UKC1-75

22kW 75A

37kW 75A

45kW 64A

45kW 47A

200

1000

UKC1-85

25kW 85A

45kW 85A

45kW 75A

45kW 52A

200

1000





Coil voltage(AC) :

50Hz: 24V, 42V, 48V, 100V, 110V, 220V, 240V, 380V, 400V, 415V, 440V, 500V, 550V
60Hz: 24V, 48V, 110V, 120V, 208V, 220V, 240V, 277V, 380V, 440V, 480V, 600V




Coil voltage(DC):

12V, 20V, 24V, 48V, 60V, 80V, 100V, 110V, 125V, 200V, 220V, 250V
