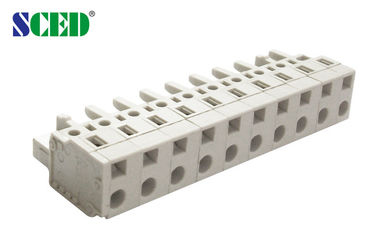

Pitch 7.5mm 300V 15A Female Pluggable Terminal Block Connector 2P-16P

China Pitch 7.5mm 300V 15A Female Pluggable Terminal Block Connector 2P-16P supplier

Large Image :  Pitch 7.5mm 300V 15A Female Pluggable Terminal Block Connector 2P-16P

Product Details:

Place of Origin: Shenzhen, China
Brand Name: SCED
Certification: UL, CE
Model Number: TP508P-75

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
Contact Now
Detailed Product Description
Type: Terminal Block Connector,Pluggable Terminal Blocks, Plug-in Terminal Blocks Pitch: 7.5mm
Wire Range: 14-16 Rated Voltage: 300V
Rated Current: 15A Color: Green
Applications: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Level: Single Level

Detailed product Description:

Pitch 7.5mm 300V 15A Female Pluggable Terminal Block Connector 2P-16P

■Single Level;  □Double Levels;  □Triple Levels

This female plug match with male sockets’ series: TP508H-75, TP508H-75V

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors




How to order:

Pitch 7.5mm 300V 15A Female Pluggable Terminal Block Connector 2P-16P

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 15





Wire Range                       AWG

14-16





IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 15

320 / 15

630 / 15

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring Clamp

Stainless Steel

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data



Stripping Length                    mm

10-11










Pitch 7.5mm 300V 15A Female Pluggable Terminal Block Connector 2P-16P


Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
