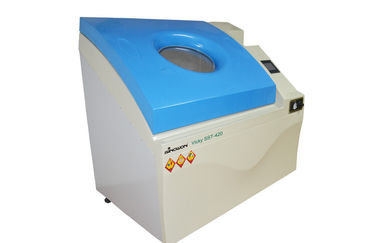

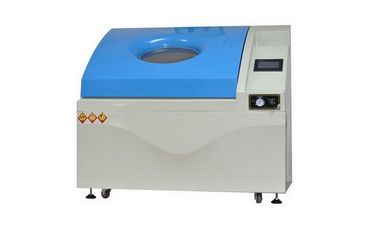

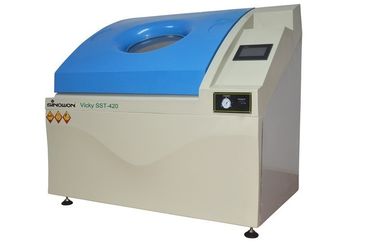

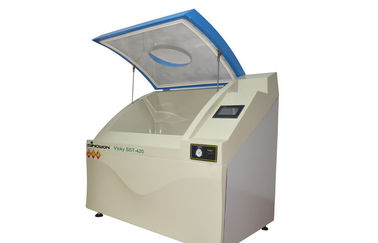

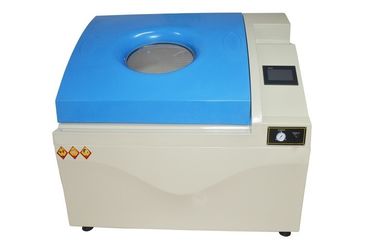

Automatic Cyclic corrosio Salt Spray Test Chamber with Touch Screen Controller

Automatic Cyclic corrosio Salt Spray Test Chamber with Touch Screen Controller
Automatic Cyclic corrosio Salt Spray Test Chamber with Touch Screen Controller Automatic Cyclic corrosio Salt Spray Test Chamber with Touch Screen Controller Automatic Cyclic corrosio Salt Spray Test Chamber with Touch Screen Controller Automatic Cyclic corrosio Salt Spray Test Chamber with Touch Screen Controller Automatic Cyclic corrosio Salt Spray Test Chamber with Touch Screen Controller

Large Image :  Automatic Cyclic corrosio Salt Spray Test Chamber with Touch Screen Controller

Product Details:
Place of Origin: DONGGUAN/CHINA
Brand Name: SINOWON
Certification: CE
Model Number: Vicky SST-420
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Plywood
Delivery Time: 15 to 20 Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 Sets Per Month
Detailed Product Description
Internal Dimension: 1000x700x600(WxDxH)mm Outer Dimension: 1560*1000*1580(W*D*H)mm
Power Supply: AC 220V/50HZ/20A Test Chamber Material: Glass Fiber Reinforced Plastics, Thickness: 5mm
Solution Tank: With Water Level, PVC Board, Thickness: 5mm Test Standard: CNS, JIS. ASTM
High Light:

Salt Spray Test Machine

,

Salt Spray Testing Equipment

Cyclic corrosion testing simulates the closet actual natural environment, such as salt spray, drying, humidity and temperature alternating. The testing is strict than natural environment, and can be programmed or tested individually.


There is national testing standard for salt spray test, with acetic acid salt spray corrosion test, Copper-accelerated acetic acid-salt spray test, and Cyclic corrosion test. Vicky SST-420 apply glass
fiber reinforced plastics and touch screen auto running, it can run all the environmental test in one chamber, conform relevant international standards.


It is widely used to test corrosion resistance of automotive, paint, surface coating, chemical, aerospace, electronic, car industry, offshore and defense industries.





III, Technical Specification



Name

Salt Spray and Cyclic Corrosion Test Chamber

Model

Vicky SST-420

Order#

221-331

Internal Dimension

1000x700x600(WxDxH)mm

Outer Dimension

1560*1000*1580(W*D*H)mm

Power supply

AC 220V/50HZ/20A

Materials

Test Chamber

glass fiber reinforced plastics, thickness: 5mm

Cover

glass fiber reinforced plastics, with viewing window, auto

lifting system to control cover

Solution Tank

With water level, PVC board, thickness: 5mm

Chamber Frame

Glass fiber, adjustable test angle

Saturation barrel

Saturation barrel

Temperature

Available for CNS, JIS, ASTM, according to specific application

Salt Spray Test

1.Test Chamber:35℃±1℃

2.Saturation Barrel:47℃±1℃

Copper-accelerated acetic acid-salt spray test

1.Test Chamber:50℃±1℃

2.Saturation Barrel:63℃±1℃

Test standard

CNS, JIS. ASTM

Spray Mode

Tapered disperser

Adjustable Spray volume, and make spray even

nozzle

Precision Glass nozzle

Spray volume

1~2mL/80cm²1hr

Defogging Mode

Air enforcing and drain out

Control System

Chamber Temperature/

Saturation barrel

Touch screen controller; temperature resolution 0.1℃,

 from 0-99.90.1℃; PID auto tuning

Heating Slot Safe Temperature

0~99℃

First grade Pressure Structure Adjustment

1.1st grade pressure regulating valve, pressure range 2-2.5kg/cm²

2.2nd grade pressure regulating valve, pressure

0-4.0kg/cm² adjustable; spraying pressure adjust to 1.0Kg/cm²

3, pressure gage 2 Kg/cm² 1piece, resolution 0.1 Kg/cm²





IV, Standard Delivery



Component Name

Qty

Component Name

Qty

Color Touch Screen Controller

1

Water level Controller

1

Heating Slot Safe Temperature Controller

2

Warning light

1

Pressure Gage

1

Over temperature protector

2

electromagnetic contactor

1

Supporter Rod

1

electromagnetic contactor Solid

1

Acl reagent 500g

2

NOX  LY2N relay

1

10L Solution Barrel

1

NOX  MY2N relay

4

80cm² Collecting Cup

2

QJA  V2A702-03 magnetic valve

4

50ml measuring cylinder



Automatic Cyclic corrosio Salt Spray Test Chamber with Touch Screen Controller 0 Automatic Cyclic corrosio Salt Spray Test Chamber with Touch Screen Controller 1
