AC Magnetic Contactor

AC Magnetic Contactor
AC Magnetic Contactor

Large Image :  AC Magnetic Contactor

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKQ-32MB, UKQ-40MB
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs per month
Detailed Product Description
Brand: KRIPAL Current Range: 32A, 40A
Poles: 3P Auxiliary: 1NO+1NC
Contacts: 85% Silver Ag Coil: AC
High Light:

AC Magnetic Contactor

,

Heat Pump Contactor

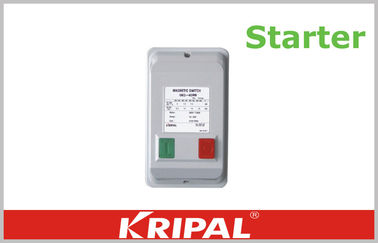

AC Motor Magnetic Motor Contactor Starter



A magnetic starter is an electromagnetically operated switch which provides a safe method for starting an electric motor with a large load. Magnetic starters also provide under-voltage and overload protection and an automatic cutoff in the event of a power failure.





Description:



  UKQ1 series magnetic motor starter are suitable for 50Hz or 60Hz, rated voltage up to 660V, current up to 95A circuit. In order to protect motor starting, accelerating the motor to rated rev, against overload operation and artificially breaking the circuit of protected motor.





Specifications:


Model Rated ultimate(KW) Rated current(A) AC1 Type
Single-phase motor Three-phase motor AC3 Type Three-phase motor AC3 Type
110V 220V  200-220V 380V-440V 500V-550V 200-220V 380V-440V 500V-550V A
UKQ-9MB 0.4 0.8 2.5 4 4 11 9 7 25
UKQ-12MB 0.5 1 3.5 5.5 7.5 13 12 12 25
UKQ-18MB 0.75 1.5 4.5 7.5 7.5 18 18 13 40
UKQ-22MB 0.9 1.8 5.5 11 15 22 22 22 40
UKQ-32MB 1.2 - 7.5 15 18.5 32 32 28 50
UKQ-40MB 1.7 - 11 18.5 22 40 40 32 60
UKQ-50B - - 15 22 30 50 50 43 80
UKQ-65B - - 18.5 30 33 65 65 60 100
UKQ-75B - - 22 37 37 75 75 64 110
UKQ-85B - - 25 45 45 85 80 75 135





Working conditions:



1). The altitude does not surpass 2000m;

2). The arrounding temperature is: -5° C ~ +40 ° C, its average temperature does not surpass +35 ° C in 24 hours;

3). The relative temperature is not over 85% (20 ° C ± 5 ° C);

4). The vibration is not over 0.5mm, the frequency is not over 600times/minute

5). Does not surpass ± 5 with the vertical gradient;

6). Hase rainproof and snowproof equipment place.

7). If there is welds explodes in the dangerous medium, And with the dew corrosion metal body and the electric conduction rust place.





Dimension:



AC Magnetic Contactor 0
