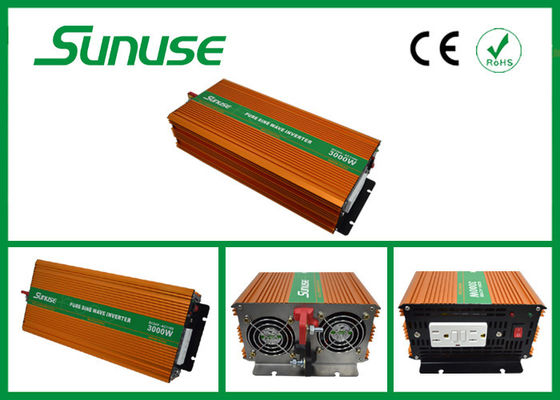

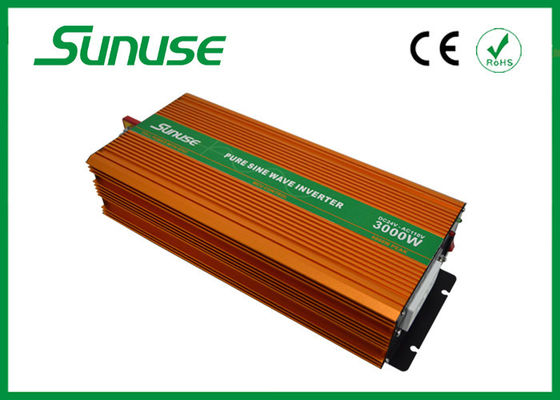

sinewave inverters

Item:

3000W 12V

3000W 24V

3000W 48V

Input DC Voltage Range:

11-16V DC

22-32V DC

44-62V DC

Under-voltage Protective:

10.0±0.3V DC

20.0±0.8V DC

40.0±1.5V DC

Under-voltage Alarm:

10.5±0.3V DC

21.0±0.8V DC

42.0±1.5V DC

Over Voltage Protective:

16.0±0.3V DC

31.0±0.8V DC

62.0±1.5V DC

Over Voltage Recovery:

15.0±0.3V DC

29.0±0.8V DC

59.0±1.5V DC

Max Power:

3000W

Peak Power:

6000W

Package:

White box package

Reverse Protecion:

Blown fuses

Over Load Protection Power:

110%-120%

Quiescent Current:

≤0.1A~0.6A

Max. Efficiency:

≥92%

Total Harmonic Distortion:

≤3% Linear load(pure sine wave)

Short Circuit:

YES

Status Indicator Lamp:

Work: Green LED    Failure: Red LED and alarm
LED Display: Voltage, Current, Power(optional)

Work condition:

Operating Temperature: -10~40°C

Operating Humidity: 10--90%(non-condensate)
