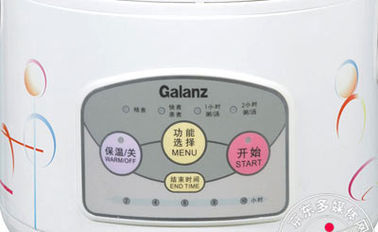

Single Side FPC Backit Membrane Switch Panel RoHS And SGS Marks With 3M Adhesive

Large Image : Single Side FPC Backit Membrane Switch Panel RoHS And SGS Marks With 3M Adhesive

Product Details:

Place of Origin:	China
Brand Name:	TKM MS
Certification:	ISO9001:2008, SGS,Rohs
Model Number:	TKM--MS--348

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	negotiation
Packaging Details:	Polybag per pcs，50per cartoon
Delivery Time:	15-20days
Payment Terms:	T/T or L/C
Supply Ability:	100000Pieces per month

Contact Now

Detailed Product Description

Highlight:	graphic overlays

Single Side FPC Backit Membrane Switch Panel RoHS And SGS Marks With 3M Adhesive

Quick details

Name	FMSP	Application	Electric products
Color	Transparent,red,yellow, green,blue.Pink.,purple	Feature	Large & nice
Contacts	Customized	Surface hardness	>7
Operating Temperature	OPL = -10, TOPH =60	Storage Temperature	TSTL = -20, TSTH

Descriptions:

Flat Membrane Switch Panels
1) Custom made OEM/ODM
2) Precise silk screen printing overlay add touch screen panel
3) Rich colors
4) High sensity & High quality
5) Environment Friendly
6) Perfect exterior
6) Raw Materials: PET film overlay+ touch panel

Competitive Advantage:
Hard wear,
corrosion resistance,
high transmittance,
control feel smooth,
high reliability

Specifications

Lens Color	All
Input force	＜10g
Surface hardness	＞6H
Interface Type	IIC
IC Type IC	FT5406
Number of touchpoint	5,10
Sensor thickness ITO	0.55mm
TP size	7inch
View Area	190.02*133.47mm
Active Area(W*L)	193.02*136.47mm
Outline	Drawings subject to confirmation
Coverlens thickness	0.7mm

Applications:

Our membrane switches are widely used in :
• Medical Equipment
• Telecommunications apparatus
• Telephone systems
• Household appliances
• Security systems
• Point of sale apparatus
• Industrial controls
• Toys
