Copper Film Membrane Switch and backlight membrane keypad auotype pet and 3M adhesive with metal dome and led

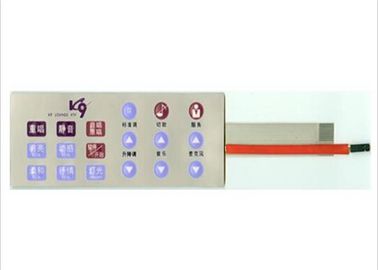

Large Image : Copper Film Membrane Switch and backlight membrane keypad auotype pet and 3M adhesive with metal dome and led

Product Details:

Place of Origin:	Dongguan，China
Brand Name:	Foundation
Certification:	ISO9001:2008, SGS,Rohs
Model Number:	HC-MS-403

Payment & Shipping Terms:

Minimum Order Quantity:	150Pcs
Price:	Negotiable
Packaging Details:	Polybag per pcs，50pcs cartoon
Delivery Time:	15-20days
Payment Terms:	T/T,L/C
Supply Ability:	100000piece/pieces per Month

Contact Now

Detailed Product Description

Material:	F150	Color:	White
Adhesive:	3M
Highlight:	Backlit Membrane Switch

Copper Film Silicone Keypad Membrane Switch Tactile Type 0.3mm - 1.5mm

Description:

1) Membrane Switch with windows

2) Silicone keypad

3) Silk Screen Printing

4)perfect exterior

5) Over 1 million life cycles

Material : PET /PC
Adhesive: 3M467 & 3M468 or as per request
High life time :>1million times

Pass:ISO9001:2008 RoHS.SGS
High quality

Commercial terms:

MOQ: 150pcs

Payment Terms: T/T or L/C

Mold Charge: 100% in Advance

Sample Time: 9-10 days after drawing approval.

Lead Time for production: 15-22 days after sample approval

Applications:

Our membrane switches are widely used in:

Medical Equipment
Telecommunications apparatus
Telephone systems
Household appliances
Security systems
Industrial controls

Specifications:

wire lead resistance:	＜1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0～30V DC	Operation Temperature:	-40℃～70℃
Rated Voltage:	＜50V, DC	Operation Humidity:	at40℃,＜98%RH
Insulation resistance:	＜100MΩ,250V DC	Dome springback time:	＜5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree
