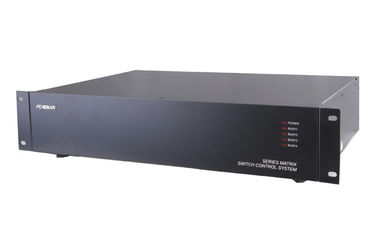

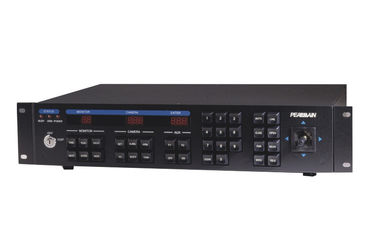

Full Cross-point Analog Video Matrix Switch 64x16 RS-485 or TCP / IP Communication

Full Cross-point Analog Video Matrix Switch 64x16 RS-485 or TCP / IP Communication
Full Cross-point Analog Video Matrix Switch 64x16 RS-485 or TCP / IP Communication Full Cross-point Analog Video Matrix Switch 64x16 RS-485 or TCP / IP Communication

Large Image :  Full Cross-point Analog Video Matrix Switch 64x16 RS-485 or TCP / IP Communication

Product Details:
Place of Origin: China
Brand Name: pearmain
Certification: CE, FCC, UL
Model Number: PE5064-16
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: negotiation
Packaging Details: special shipping carton, 57x43x18cm, 10kgs
Delivery Time: 7 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000units per week
Detailed Product Description
Input: 64ch Output: 16
Menu: English OSD Menu
High Light:

analog matrix

,

analog switch matrix

PE50 Full cross point analog Video Matrix , Pearmain standard matrix switch 64x16​



Quick Detail:



● Integrated Menu Setup

Menu Setup including English operation interface, with time, date and 16pcs character; it can run on-screen menus for system program by monitor 1, keyboard on matrix or main control keyboard

● Camera image masking and Inserting

Masking, to jump over the camera image which don’t need to display, Inserting, to insert and display which need to display (but don’t’ display).

●Up To 64 Cameras And 16 Monitors for one Matrix Bay

● Alarm On/Off

PE50 can set alarm on/off schedule by menu of alarm on/off, so system could auto run alarm on/off according to time set in menu.

● CE, FCC, ROHS,UL compliant



Description:



PE50 series matrix is an integrated system of audio/video and switch/control, it can control 1-64ch audio/video input and 1-16ch audio/video output, It also can allocate up to 16 keyboard, It can control multiple speed dome based PE5135 code converter, up to 64ch camera input and 16ch monitor output.



Specifications:



Communication Mode

   serial (RS-485),TCP/IP

Display Mode

   numeral duct

Baud Rate

     9600 bits/s

Connection Mode

    STP

Video Isolation degree

 -45dB

Channel Bandwidth

  10 MHz

Video S/N

  65 dB

Differential Phase

   ≤1.1°

Differential Gain

 ≤0.6%

Insertion Gain

  ≤0.1db

Synchronous Nonlinear Distortion

   1%

Brightness Nonlinear Distortion

1.50%

Inter-modulation Distortion

0.50%

Amplitude Frequency Characteristic

  1.5db

Waveform Distortion in a Short Time

3.50%

Cluster Frequency Delay Characteristics

  6ns

Brightness/Color Time Delay Offset

 2.5ns

Brightness/Color Time Delay Gain

8%

Video Input Signal

 1Vp-p /75Ω

Video Output Signal

  1Vp-p /75Ω

Audio Input Signal

  1Vp-p

Audio Output Signal

  1Vp-p

The Maximum Inputs (can be controlled)

  64

The Maximum Receiver/drivers (can be controlled)

  255

The Maximum allocated keyboard

16

Memory Retention in Power-off

  10 years

Operable Keyboards number

   main keyboard with 35 keys and, sub keyboard

with 23 keys

temperature

  -10℃~ +35℃

Working Voltage

  AC 220V ±10%  50/60 Hz for matrix, DC 9V ±10%

for sub keyboard.

Matrix Weight

   5.8kg

Matrix Power

 30 W

Matrix Size

  430(W)×90(H)×313(L)mm

Installation Mode

   desktop or 19” standard rack



Applications:



For the surveillance system where there are all analog cameras, the application focus on real time surveillance.
