Cat3 Cat5e Cat6 CAT6A 6P4C Keystone Network Jack with Terminal Block

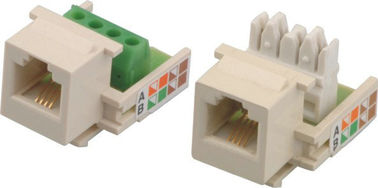

Large Image : Cat3 Cat5e Cat6 CAT6A 6P4C Keystone Network Jack with Terminal Block

Product Details:

Place of Origin:	China
Brand Name:	YUHUI
Certification:	ISO,RHOS,UL,CE
Model Number:	YH-7001

Payment & Shipping Terms:

Minimum Order Quantity:	1000pieces
Price:	Negotiation
Packaging Details:	500piece/box
Delivery Time:	20days
Payment Terms:	TT,LC,West Union
Supply Ability:	5000pieces/day

Contact Now

Detailed Product Description

Material:	ABS And Copper	For Telephone:	RJ11 6P4C Socket
Connection:	IDC Or Screw Connection	Use With:	Surface Mount Box ,face Plate,blank Patch Panel
Highlight:	modular Rj45 jack

Cat3 6P4C Screw Connection Keystone Network Jack with Terminal Block

Quick Detail:

1. Industry standard modular 'Keystone' dimensions

2. 110 IDC and terminal block termination

3. TIA/EIA 568A and 568B wiring options

4. Module material - Polycarbonate Support, ABS Jack (UL94V-0)

5. Wire gauge 22-24 AWG,easy operation

6. Cat.3 Cat5e Cat.6 and cat.6A on option,shielded and unshielded types.

Description:

Cat.3 6P4C Keystone Jack with Terminal Block

With compact size, integral shutter, keystone mounting format a, our keystone Jack for voice and Category 5e and 6A ensure a smart, reliable installation. All copper conductors are plated with gold. The 8 pins of RJ45 tool-less keystone jack are effortlessly terminated in one simple operation resulting in reliable interconnection in record time. The jacks can be reused several times if a wiring mistake is made.

Cat.3 Rj11 keystone module,Cat.5e flush mount keystone,Cat.6 high performance jack outlet,Cat.6A RJ45 module connector,UTP and FTP keystone jack, toolless insertion keystone jack on option.

What is more, there are exact suited blank patch panel, face plate and surface mount box to use together with our keystone jack. In this case, you can make the whole link with better characters.

Applications:

Compatible with YH Faceplates
Compatible with YH Surface Mount Boxes
Compatible with YH Snap-in Patch Panels

Specifications :

Electrical	Contact Resistance:110 Mohs MAX.
	Insulation Resistance:1 000 megohms MIN 500 VDC
	Dielectric Strength :750 VAC RMS 60Hz ,1 MIN
Environment	Storge: -40~ 85°c
Environment	Operation: 0~70°c
Machanical	Housing Material: PBT-UL90V-0 or ABS
	180 degree for Cabling and 90 degree for cabling
	Contact Material: PC-UL90V-0
	Contact: Phosphor Bronze with Nickel Plating
	RJ45 Jack:IFE:750 times MIN.
	IDC Life :200 times MIN.
	Wire:AWG 24-26
	Cat.3 Cat5e Cat.6 and cat.6A on option
	Retentiveness of insertion structure:50N 60±5s
