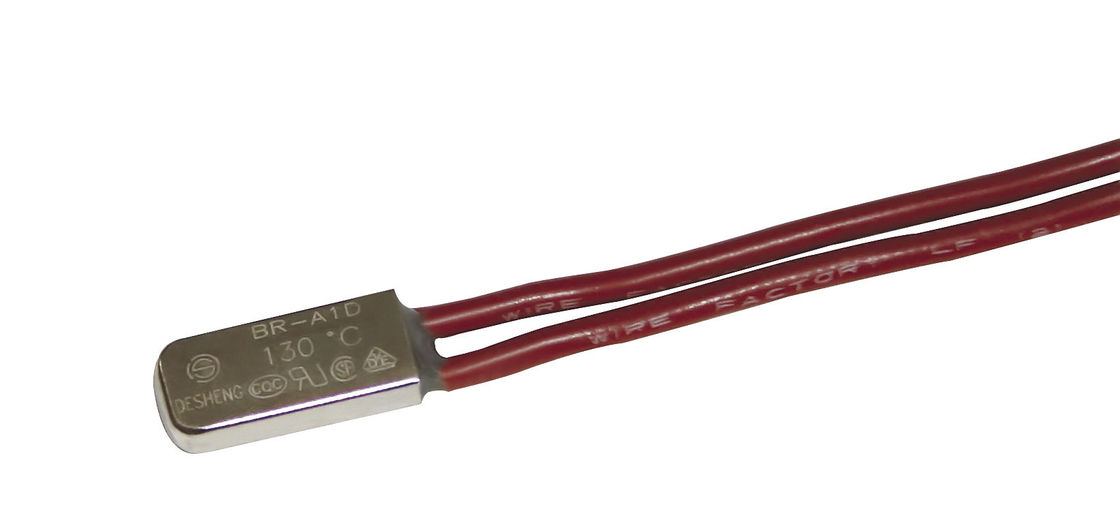

24V / 8A BR-A1D DC Thermal Overload Protection , Electronic Motor Controller

24V / 8A BR-A1D DC Thermal Overload Protection , Electronic Motor Controller
24V / 8A BR-A1D DC Thermal Overload Protection , Electronic Motor Controller 24V / 8A BR-A1D DC Thermal Overload Protection , Electronic Motor Controller

Large Image :  24V / 8A BR-A1D DC Thermal Overload Protection , Electronic Motor Controller

Product Details:
Place of Origin: China
Brand Name: DESHENG
Certification: UL VDE CE CQC CB KC
Model Number: BR-A1D
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Packaging Details: 5000pcs per package
Delivery Time: 3-10 days on order date
Payment Terms: T/T L/C D/P
Supply Ability: 3,000,000pcs/month
Detailed Product Description
Product Name: Thermal Overload Protector Contact Capacity: 125Vac/8A, 250Vac/5A, 24Vdc/8A
Cycles Life: 6,000 Cycles Seal: Epoxy Resin
Temperature Tolerance: ±5°C Certifications: UL,VDE,CE CQC
High Light:

thermal overload protectors

,

overload protector

,

thermal overload protection

24V/12A BR-A1D DC Thermal Overload Protection , Thermal Cut-off Protector 250V 5A


Description:

Normally on and open on temperature increment

Changsheng BR-A1D series motor protector is built to meet almost any requirement of protection in a wide range of small motors, small transformers, solenoids, and more. This compact motor protector is the best solution to protect the wide variety of motors under 1 Hp used in industrial and domestic appliances against locked rotor and overload situations.
This motor protector consists of a metal SPCC housing that holds and protects the inner components against infiltration as well as mechanical deformation. In single–phase motors, the BR-A1D can be mounted directly in the main circuit to serve as an on– or in–winding protector.



Applications:

  • Small motors
  • Coils
  • Transformers
  • Washers and dryers
  • Dishwashers
  • Automotive accessory motors
  • PC boards
  • Battery charges
  • ………and more.



Specifications:


Contact capacity

125Vac/8A, 250Vac/5A, 24Vdc/8A

Cycles life

6,000 cycles

Open temperature

50°C to 150°C in increments of 5°C

Temperature Tolerance

±5°C

Differential Temperature

depending on open temperature

Seal

Epoxy resin

Contact resistance

≤50 mΩ

Insulation resistance

The resistance between the leads and insulation sleeve is >100 MΩ with 500 VDC at 25 °C.

Lead wire pull strength

30 N applied from lead to lead for 5sec. No slip-off or rupture



Competitive Advantage:


1. The strongest Chinese manufacturer, ISO 9001and ISO14001 recognized.

2. Compact, miniature size.

3. UL,VDE,CE CQC Approved.

4. Individually temperature checked on modern, custom-designed equipments from Japan.

5. Snap–action disc, normally on.

6. Epoxy resin

7. Bimetal discs carry circuit current, so it is current and temperature double sensitivity for maximum design flexibility and application




BR-A1D with standard metal case


24V / 8A BR-A1D DC Thermal Overload Protection , Electronic Motor Controller 0

24V / 8A BR-A1D DC Thermal Overload Protection , Electronic Motor Controller 1
24V / 8A BR-A1D DC Thermal Overload Protection , Electronic Motor Controller 2



BR-A1D with enforced metal case

Note: wall thickness of the enforced case is 0.5m minimum and it will withstand 30MPa injection pressure (no deformation)


24V / 8A BR-A1D DC Thermal Overload Protection , Electronic Motor Controller 3


24V / 8A BR-A1D DC Thermal Overload Protection , Electronic Motor Controller 4


  • ①Metal case  ②Bracket  ③Bimetallic disc ④Movable contact    ⑤Fixed base
  • ⑥Stationary contact     ⑦Epoxy resin   ⑧Lead wire
