Printing Circuit PET / PC Printed Circuits Board CNC Overlay Keyboard

Printing Circuit PET / PC Printed Circuits Board CNC Overlay Keyboard
Printing Circuit PET / PC Printed Circuits Board CNC Overlay Keyboard

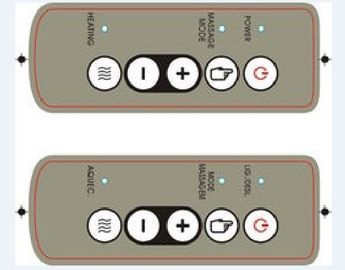

Large Image :  Printing Circuit PET / PC Printed Circuits Board CNC Overlay Keyboard

Product Details:
Place of Origin: Dongguan China
Brand Name: HHC
Certification: ISO9001:2008, SGS,Rohs
Model Number: HC-FMS-305
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable
Packaging Details: Inner packing:1pc/PP bag,PE bag,gift box Outer packing:exporter carton, or according to the customer
Delivery Time: Around 7 business days after deposit received
Payment Terms: T/T
Supply Ability: 100000 Piece/Pieces per Month
Detailed Product Description
Highlight:

flexible printed circuit boards

Printing Circuit PET / PC Printed Circuits Board CNC Overlay Keyboard


membrane pa
1) Custom made OEM/ODM
2) Rasing available
3) Membrane switch faceplate
4) Withstand millions of cycles

5) perfect exterior
6) metal dome or silicone keypad is also available.


rated current25-100mA,0~30V DC
materialPET /PC
Adhesive3M467,3M468,and no adhesive
Featuremoisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof
wire lead resistance<1Ω/CM
Insulation resistance<100MΩ,250V DC



Competitive Advantage:

1.Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2.Panel can wash, good protection of durable color,characters,logos and other panel contents without injury.
3.Small size,light weight ,thin thickness, good tactility, abrasion resistant, installation and connection convenience.
4.Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
5.Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6.Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.
7.Customized specification is available and keys can make different shapes


Applications:

Our membrane switches are widely used in :

  • Medical Equipment
  • Telecommunications apparatus
  • Telephone systems
  • Household appliances
  • Security systems
  • Point of sale apparatus



wire lead resistance:

<1Ω/CM

Life time:

>1 Million times

rated current:

25-100mA,0~30V DC

Operation Temperature:

-40℃~70℃

Rated Voltage:

<50V, DC

Operation Humidity:

at40℃,<98%RH

Insulation resistance:

<100MΩ,250V DC

Dome springback time:

<5 msec

Switch travel:

Flat Type 0.05-0.3mm

Base Material voltage withstand:

1500 V DC

tactile type:0.3-1.5mm

Tail flexiblility:

any angle within 180 degree















    Specifications:

    1 material : PET /PC
    2 adhesive: 3M467 & 3M468  or as per request
    3 High life time :>1million times
    4 Pass:ISO9001:2008 RoHS.SGS
    5 High quality
