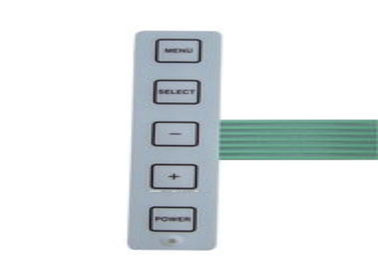

Matrix 3M467 And 3M468 Adhesive PCB Membrane Switch Quakeproof For GPS

Matrix 3M467 And 3M468 Adhesive PCB Membrane Switch Quakeproof For GPS
Matrix 3M467 And 3M468 Adhesive PCB Membrane Switch Quakeproof For GPS

Large Image :  Matrix 3M467 And 3M468 Adhesive PCB Membrane Switch Quakeproof For GPS

Product Details:
Place of Origin: Dongguan,China
Brand Name: Foundation
Certification: ISO9001:2008RoHS
Model Number: HC-MS-270
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Polybag per pcs,50per cartoon
Delivery Time: 15-20days
Payment Terms: T/T or L/C
Supply Ability: 100000Pieces per month
Detailed Product Description
High Light:

custom membrane switch

,

membrane switch panel

Matrix 3M467 And 3M468 Adhesive PCB Membrane Switch Quakeproof For GPS





Description:

  1. EL Circuit for  toys
  2. Custom made
  3. Any size and shape available
  4. Energy save product, low power consuming.
  5. Withstand millions of cycles

Membrane Switch, Flexible Circuit, FPC circuit Supplier, film switch, FPC circuit Supplier, Membrane Switch Supplier, Membrane Switch manufacturer, Flexible printing Circuit, tactile membrane switch, Multi media touch screen circuit, Electronic white board circuit, Membrane control switch, LED membrane switch, EL membrane switch, EL Panel.





Specifications:


1 material : PC/PET
2 High life time :>1million times
3 Pass:ISO9001:2008RoHS.
4 High quality



Initial luminance

≥30-750 CD

Voltage range

AC50V—220V

Frequency

200HZ—1500HZ

Power rate

≤0.8MW/CM

Currency

≤0.15MA/CM

Life span

≥20000Hrs.



















Competitive Advantages:


1. Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2. Top quality
3. Short lead time.





The main technical parameters of membrane switch



1.Contact resistance: <1Ω /cm
2.Insulation resistance: <100MΩ (250V DC)
3.operating voltage: ≤ 50VDC
4.working current: 25- 100mA,0-30V DC
5.reliability, service life:<1 million times
6.operating temperature: -40 ℃ ~ +70 ℃
7.Operating humidity:when40°C,<98%RH
8.spring time: ≤ 5ms




Applications:


Our membrane switches are widely used in :
• 3C Electronics,
• Automobile industry
• Decoration light project
• Art work and gifts
• Commercial usage.
• Public facility

Both OEM and ODM orders are welcome.
