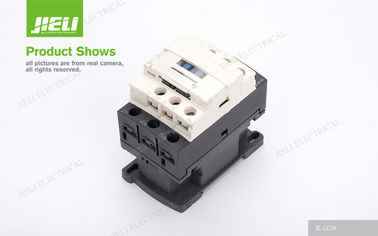

220V 50Hz / 60Hz Safety AC Magnetic Electrical Contactor For Protection

220V 50Hz / 60Hz Safety AC Magnetic Electrical Contactor For Protection
220V 50Hz / 60Hz Safety AC Magnetic Electrical Contactor For Protection

Large Image :  220V 50Hz / 60Hz Safety AC Magnetic Electrical Contactor For Protection

Product Details:
Place of Origin: Zhejiang, China (Mainland)
Brand Name: JIELI
Certification: CE/ISO9001/CB/TUV
Model Number: JL-LC1D
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: Negotiable
Packaging Details: Standard export cartons or according to the customer's requirements Packing quantity:50 pcs/carton Packing measurement:Carton40x26x20 cm /44x31x22cm/41x27x26cm/42x26.5x26cm N.W:18 KG/carton G.W:20KG/carton
Delivery Time: Within 20days
Payment Terms: L/C,D/P,T/T, Western Union, MoneyGram
Supply Ability: 1000000 Piece/Pieces per Month
Detailed Product Description
High Light:

general electric contactor

,

Electric Motor Contactor



220V 50Hz / 60Hz Safety AC Magnetic Electrical Contactor For Protection



Quick Detail:




Place of Origin: Zhejiang,China(Mainland)
Brand Name: JIELI
Model Number: JL-LC1D
Electricity Type: AC
Number of Pole:3P
Phase:3
Pole:3P,4P
Main Circuit Rating Voltage:690V
Main Circuit Rating Current:200A
Voltage: up to 660V
Current: up to 95A
Frequency: 50HZ/60HZ
Cover: fire proof
Quality: Stable and reliable
Price: competitive



Description:





JI- LC1D Series AC Magnetic Contactor are mainly used in 50 HZ/60HZ electrical lines of the rated voltage up to 660v AC and rated current up to 370A, are applicable for remote making anf breaking of electrical lines or frequent control of AC motors, having no-voltage protection, Usually, JL-LC1D AC Magnetic Contactorcan be combined with JR29 series thermal relay to form electromagnetic starters which have overload and open-phase protection, JL-LC1D AC Magnetic Contactor complies with IEC60947-4-1.



Applications:





JL-LC1D Series AC Magnetic Contactor is suitable for using in the circuits up to the rated voltage 660V  AC 50Hz or 60Hz. Rated current up to 620A, for making, breaking, frequently starting&controlling the AC

 motor. Combined with the auxiliary contact block, time & machine-interlocking device etc, it because the delay contactor, mechanical interlocking contactor, star-delta starter.  With the thermal relay, JL-LC1D65 AC Magnetic Contactoris combined into the electromagnetic starter.  The JL-LC1D AC Magnetic Contactor comply with IEC60947-4.



Specification:





Model

 D09

 D12

 D18

 D25

 D32

 D40

 D50

 D65

Rated working current(A)

 AC3

 9

 12

 18

 25

 32

 40

 50

 65

 AC4

3.5

 5

 7.7

 8.5

 12

 18.5

 24

 28

AC3 Capacity of

3 squirrel-cage

motor AC3(KW)

 220/230V

2.2

 3

 4

 8.5

 7.5

 11

 15

 18.5

 380/400V

 4

 5.5

 7.5

 11

 15

 18.5

 22

 30

 415V

 4

 5.5

 9

 11

 15

 22

 25

 37

 500V

 5.5

 7.5

 10

 15

 18.5

 22

 30

 37

 660/900V

 5.5

 7.5

 10

 15

 18.5

 30

 33

 37

Rated heat current(A)

 20

 20

 32

 40

 50

 60

 80

 80

Electrical life

 AC3×104

 100

 100

 100

 100

 80

 80

 60

 60

 AC4×104

 20

 20

 20

 20

 20

 15

 15

 15

 Mechanical life×104

 1000

 1000

 1000

 1000

 800

 800

 800

 800

 Number of the contacts

     3P+NO

3P+NC+NO

     3P+NC





Competitive Advantage:




1. JL-LC1D AC Magnetic Contactor is Magnetic Contactor.
2. The Rated voltage of JL-LC1D AC Magnetic Contactor is 660V,the frequency of JL-LC1D AC Magnetic Contactor is 50/60Hz,rated current is up to 95A.
3. JL-LC1D AC Magnetic Contactor spare parts supplier.
4. JL-LC1D AC Magnetic Contactor has 5 years warranty.
