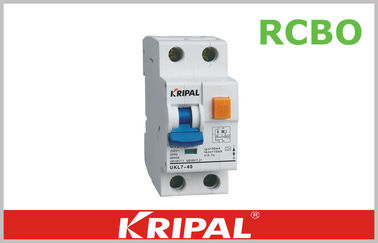

1P+N 10kA Residual Circuit Breaker 2 Pole with Over Current RCBO
Description:
Residual circuit breaker is suitable for the leakage protection of the line of AC 50/60Hz, rated voltage single phase 240V, rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will automatically cut off the power within 0.1s to protect human safety and prevent the accident due to the current leakage. leakage breaker can protect against overload and short-circuit. It can be used to protect the line from being overloaded and short-circuited as wellas infrequent changeover of the line in normal situation. It complies with standard of IEC/EN61009-1 and GB16917
Main features:
1. Action function independent of the voltage of main circuit
2. The neutral line breaking could make the device after and more reliable
3. Dual-function wiring terminal with strong wiring capability
4. The indicator for contact state help identification of contact condition
5. Different hand handle color is to indicate the rated current
6. Wide rated current scope to serve as general switch at home service
Specitifcation:
| Technology Specification & Electrical Specification | |
| Electric standard | IEC61009; GB 16917.0 |
| Trip time | Non-time delay; Minimal 10ms time delay |
| Rated voltage | 230V; 50HZ 230V/400V |
| Rated surplus operating current | 10; 30; 100; 300mA |
| Selection grade | 3 |
| Rated braking capacity | 10kA |
| Rated current | 6-40A |
| Tripping character | B, C, D characteristic curve |
| Maximum connected fuse | 100A gL(> 10kA) |
| Environment capability | According to the IEC 1008 standard |
| Case protection grade | IP40 after installation |
| Electric life | Not less than 4000 times of breaking and closing |
| Mechanical life | Not less than 2000 times of breaking and closing |
| Mechanical Parameter | |
| Installation mode | Installation at the DIN guide rail of 35mm |
| Terminal block capacity | Generatrix thickness 0.8-2mm |
| Shell width | 35mm (1P+N) |
The over-current tripping unit protection feature:
| Sequence NO. | Release | Test current I/In | Start state | Tripping time | Expected restlt |
| 1 | C | 1.13In | Cold state | t≤1h | Not tripping |
| 2 | C | 1.45In | Start right after the serial NO.1 test | t<1h | tripping |
| 3 | C | 2.55In | Cold state | 1s<t<60s | tripping |
| 4 | C | 5In | Cold state | t≤0.1s | Not tripping |
| 5 | C | 10In | Cold state | t<0.1s | tripping |
Loading capacity:
Our service:
1. Samples: provided freely
2. Package: packed in standard cartons, special packing is negotiable
3. Warranty: 2 years at least
4. Delivery: within 30days after received the deposit.
5. OEM, ODM is acceptable
6. We can help you with any of your idea to design and put it into production.
7. Provide help for building factories, such as: spare parts, technical questions, financial matter, management problem, approach of sales...
