Highlight: | custom membrane switch |
---|

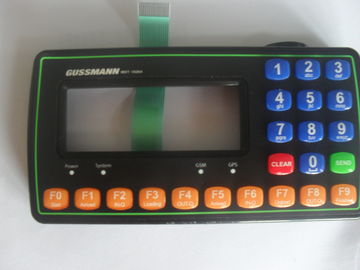

Customized Industry Silicone Rubber Keypad For Push Button Membrane Switch
Quick Detail:
Name |
Membrane switch |
Brand Name |
BEZ |
Color |
Transparent,red,cool grey,black,white |
Feature |
PU coated words |
Life Span |
>100000 times |
Certificate |
RoHS, |
Pin |
8 |
pitch |
1.0 mm |
Push force |
280g |
Tail protection |
0.05 adhesive PET and green oil printed |
Resistance |
450 ohm-450 ohm |
size |
221mm *166 mm |
Description:
> Top material: Du Pont PET
>Rear adhesive : 3M467
>Colors: 4 Colors
> Push button: 14
>Tail Length: 250 mm
> Window: glossy clear transparent
> Connector: without
> Leds : without
>Can design for customer if supplied artwork and schematic
>7 days for sample making and 15 days for mass order
>Clear outlook without dirty
Applications:
1. A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on
B. For mechanical and electrical products such as CNC machine electric weighing ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .
C. For domestic appliance , remote control ,electronic lock , washing machine , microwave oven ,electric cooker ,sound installation and so on
D. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on .
E. For electronic toy, such as electronic organ, recreational machine, electronic target and so on .
3. Note:
Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome
Tail end inserting to female connector usually only allowed no more than 20 times
Specifications
Model |
17-6 |
Graphic overlayer |
F150 |
Embossed style |
Metal dome |
Adhesive |
3M467 |
Resistance |
350 ohm |
Pitch |
1.0 mm |
Tolerance |
0.05 mm |
Printing Colors |
Transparent, red, yellow, blue ,black ,grey |
Window |
Transparent clear glossy |
Why to choose Shenzhen boerzhuo membrane switches?
1.No need to worry about the qualities (We take response if our reason lead failure ).
2.Any products in our factory are did life span test ,circuit test ,every step is in good quality control ,we insist on ,quality is depend on the making step not the QC workers ..
3.We are specialized ,can help to design and make good suggestion .
Communication with customers
A:Why the push button to be silicone rubber but not PET .
B:The embossed height of PET,PC, the most no more than 0.5 mm ,but rubber push button can be more than 1.0 mm
A: Hello, Can you help me ? What’s the different from membrane switches and membrane panel ?
B: Dear, the most difference is that membrane switches with circuit layer ,however membrane panel without .
A: What’s the lead time for sample and mass order ?
B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..
A:Which shipping partner is available ?
B: DHL, UPS, TNT, FEDEX, forwarder are okay. Which shiping cost is cheaper and speed is good, i will suggest to you. 3-4 days can arrive.
A: How long is your quality guarantee period
B: in usually,3 months.
A:Great, TKS. Do it.
