Residual Current Circuit Breaker Rccb With Electro-Magnetic Type , Electronic Type

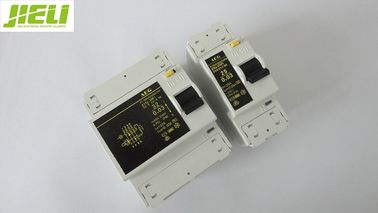

Large Image : Residual Current Circuit Breaker Rccb With Electro-Magnetic Type , Electronic Type

Product Details:

Place of Origin:	Zhejiang,China(Mainland)
Brand Name:	JIELI
Certification:	CE/ISO9001/IEC60898-1
Model Number:	JL-A

Payment & Shipping Terms:

Minimum Order Quantity:	1000 Piece/Pieces other
Price:	Negotiable
Packaging Details:	Standard Export Carton or According To The Customer' Requirements
Delivery Time:	Within 20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability:	100000pieces per month

Contact Now

Detailed Product Description

Residual Current Circuit Breaker Rccb With Electro-Magnetic Type , Electronic Type

Quick Detail:

Place of Origin: Zhejiang China (Mainland)

Brand Name: JIELI OEM/ODM

Model Number: JL-A

Type: Residual current

Poles Number: 2P/4P

Rated current(A): 16-100

Rated voltage(V): 230/400

Rated residual operating current(mA): 30mA,300mA

Rated residual non-operating current(mA): 0.5 ≤I n

Color: White

Residual current off-time: ≤0.3s

Point: silver

Parts: brass/copper

Description:

Residual Current Circuit Breaker with over-current protection (Electronic)

JL-A Residual Current circuit breaker provides the function of isolation Switching and earth leakage protection of electrical circuits.

And JL-A Residual Current circuit breaker also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical Circuit fault.

JL-A Residual Current circuit breaker is conformity with GB16917.1,IEC60898-1 standards.

Specifications:

Product name	JL-A
Standard	IEC61008/GB16196
Product certificate	CE/CB/3C etc
Rated current(A)	16-100A
Rated voltage(V)	230/400V
Pole No.	2P.4P.
Rated frequency(HZ)	50/60
Sensitivity(IΔn)	30mA/100mA/300mA
Installation style	standard 35mm guide
Mechanical life	10000
Production function	Leakage protection/Isolation function
Production degree	IP20
