Overload 230V Residual Current Circuit Breaker PDF , Air Circuit Breaker

Overload 230V Residual Current Circuit Breaker PDF , Air Circuit Breaker
Overload 230V Residual Current Circuit Breaker PDF , Air Circuit Breaker

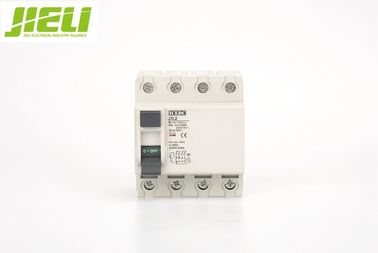

Large Image :  Overload 230V Residual Current Circuit Breaker PDF , Air Circuit Breaker

Product Details:
Place of Origin: Zhejiang,China(Mainland)
Brand Name: JIELI
Certification: CE/ISO9001/IEC60898-1
Model Number: JL-JXL
Payment & Shipping Terms:
Minimum Order Quantity: 1200 Piece/Pieces other
Price: Negotiable
Packaging Details: The carton is strong enough for sea and air shipment, residual current circuit breaker will be designed according to your requirement.
Delivery Time: Within 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability: 50000POLES/DAY
Detailed Product Description
High Light:

earth leakage circuit breaker


house circuit breaker

ID residual current circuit breaker with competitive price



Quick Detail:




Place of Origin: Zhejiang China (Mainland)


Model Number: JL-JXL residual current circuit breaker

Type: Earth Leakage, Electronic or magnetic residual current circuit breaker

Poles Number:2P/4P

Rated current(A):16-100

Rated voltage(V):230/400

Rated residual non-operating current(mA):0.5 ≤I n

Rated residual operating current(mA):30mA,300mA

Color: White

Point: silver

Residual current off-time:≤0.3sParts:brass/copperWeight:187.5g/pcx





JL-JXL residual current circuit breaker has two kind of types: Electronic or Magnetic

1.JL-JXL residual current circuit breaker choose the best material.

Excellent product comes from excellent material. Pure copper with excellent quality.

2.Meticulous design

Delicate design on product detail. Seven rivets make product stronger and stripes on handle enable better hand feel.

3.Perfect quality

Never compromise on quality, make perfect product, reach real 6KA.

4.Strong packing

Dedicate packing, improve product's added-value, help you win the market.





Product name




Product Certifications


Product Function

Leakage protection, Isolation function

Rated current(A)


Pole No


Rated voltage(V)


Rated frequency(Hz)


Sensitivity (In)


Environment  temperature


Connection type

Tunnel style,Pin style,U style

Biggest wiring ability


Action  style


Installation style

35mm standard 35mm guide





Mechanical life


Protection degree






JL-JXL  is applying to the circuit of AC 50/60Hz, 240V single phase, 415V three-phase and below it for industrial and mining enterprise, building trade, commerce  and family. To mainly prevent electric fire and personal casualty accident caused by personal electric shock or leakage of electrified wire netting,.

This residual current circuit breaker  is a current-operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident. The item is precise in structure, less elements, without auxiliary power and high working reliability. The function of the switch won't be influenced by ambient temperature and lighting. The mutual inductor of the item is used to test vector differential value of passing current, and produces are levant output power and add it differential value of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will take effect of protection.
