Lighting AC Magnetic Contactor 40a 95a 50Hz 60Hz , Electrical Contactor

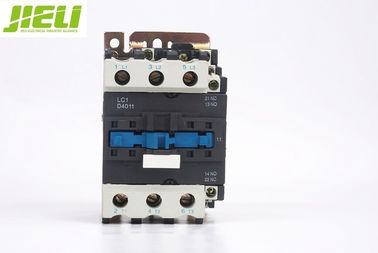

Large Image : Lighting AC Magnetic Contactor 40a 95a 50Hz 60Hz , Electrical Contactor

Product Details:

Place of Origin:	Zhejiang,China(Mainland)
Brand Name:	JIELI
Certification:	CE/ISO9001/IEC60898-1
Model Number:	JL-LC1-D40

Payment & Shipping Terms:

Minimum Order Quantity:	500pieces
Price:	Negotiable
Packaging Details:	Standard export carton or according to your request.
Delivery Time:	Within 20 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability:	100000pieces per month.

Contact Now

Detailed Product Description

Highlight:	telemecanique magnetic contactor

Lighting AC Magnetic Contactor 40a 95a 50Hz 60Hz , Electrical Contactor

Quick Detail:

Place of Origin:	Zhejiang China (Mainland)	Brand Name:	JIELI or OEM	Model Number:	LC1-D40
Electricity Type:	AC magnetic contactor	Number of Pole:	3	Phase:	3
Main Circuit Rating Voltage:	24 36 48 110 127 380 415 440	Main Circuit Rating Current:	0.02~0.08A	ac contactor:	LC1-D new and old type

Description:

JL-LC1-D series AC magnetic contactor is suitable for frequency 50Hz/60Hz, rated voltage up to 690VAC and rated current up to 150A.

JL-LC1-D series AC magnetic contactor is used for making/breaking electric circuit at a long distance & for frequent starting/stopping & controlling AC motors.

JL-LC1-D series AC magnetic contactor is used in combination with thermal relay to compose a magnetic motor starter.

JL-LC1-D series AC magnetic contactor complies with IEC60947-4-1 standard.

Specifications:

Type			LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1- D32	LC1- D40	LC1- D50	LC1- D65	LC1- D80	LC1- D95
Rated working current(A)	380V	AC3	9	12	18	25	32	40	50	65	80	95
	380V	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
	660V	AC3	6.6	8.9	12	18	21	34	39	42	49	55
	660V	AC4	1.5	2	3.8	4.4	7.5	9	12	14	17.3	21.3
Rated heat current(A)			25	25	32	40	50	60	80	80	125	125
Controllable power(kW)	220/240V		2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V		4	5.5	7.5	11	15	18.5	22	30	37	45
	415V		4	5.5	9	11	15	22	30	37	45	45
	500V		5.5	7.5	10	15	18.5	22	30	37	55	55
	600/690V		5.5	7.5	10	15	18.5	30	33	37	45	55
Pole			3,4	3,4	3	3,4	3	3,4	3,4	3,4	3,4	3,4
Rated working voltage(V)			380,660
Rated insulation voltage(V)			660
Mechanical life x10⁴			1000	1000	1000	1000	800	800	800	800	600	600
Electrical life	AC3x104		100	100	100	100	80	80	80	80	60	60
Electrical life	AC4x104		20	20	20	20	20	15	15	15	10	10
Operating frequency	Electrical life	AC3x104	1200	1200	1200	1200	600	600	600	600	600	600
	Electrical life	AC4x104	300
	Mechanical life x104		3600
Rated controlled voltage (V)			24-660
Working voltage	Close	DC%	0.85-1.1Us
Working voltage	Open	AC%	0.10-0.75Us
