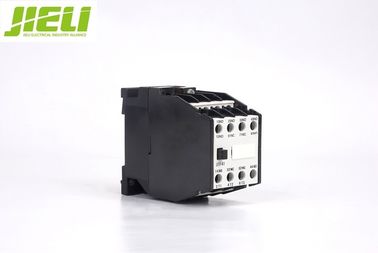

IEC60947-4-1 CB TUV AC Magnetic Mini Contactor 600KA/H 1200KA/H
Quick Detail:
Place of Origin: Zhejiang China (Mainland)
Brand Name: JIELI
Model Number: JL-3TF-41
Electricity Type: AC
Number of Pole:3
Phase:3
Main Circuit Rating Voltage: 690V
Main Circuit Rating Current: 09A-630A
Cover: fire proof
Contacts: Silver/Copper
Breaking capacity: 600KA/H 1200KA/H
Price: Competitive
Quality: Stable and reliable
Point: Silver
Guarantee: 5 years warranty
Certificate: CE/ISO9001/CB/TUV
Standard: IEC947-2,VDE0660&BS5452
Product life: 1000000 times
Description:
JIELI ELECTRICAL AC CONTACTOR CO., LTD is professional low-voltage electrics manufacturer which is located in the Wenzhou, Zhejiang China, Our main product including LC1 series AC Magnetic Contactor, GMC series AC Magnetic Contactor ,3TF series AC Magnetic Contactor and related products. Our AC Magnetic Contactor has been exported all over the world, such as southeast Asia, Middle East, Africa, eastern Europe, South America.In 2013, specially launched AC parts supply services to solve manufacturing enterprise the question of demand for accessories.
Applications:
3TF-41 AC magnetic contactor are suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V. In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system.
AC Magnetic Contactor form electromagnetic starters with suitable thermal overload or phase-failure.3TF AC Magnetic Contactor are made according to IEC947, BS5424 & VDE0660.The AC magnetic contactor is a straight motion mechanism having double breaking contacts. The auxiliary contacts are arranged NO.2NC at most.
AC Magnetic Contactor is employed the flexible locking connection between the contact support and core, three are no arc isolated panel in the Ie≤22A contactor. In the In≥32A contactors. Three are moulded arc-chute with arc-isolated panel, because all contacts are made of high confusability and against corrosion silver alloy. All series AC Magnetic Contactor can be mounted by screw, Ie≤32A contactor also by installation rail.
Specifications:
|
Type
|
Rated thermal
current(A)
|
Rated operation current(A)
|
Controllable power for motor(kw)
|
Type of auxiliary
contact
|
|
AC-3
|
AC-4
|
|
380V
|
660V
|
380V
|
660V
|
380V
|
660V
|
|
3TF40
|
20
|
9
|
7
|
4
|
5.5
|
1.4
|
2.4
|
NO
NC
1NO+1NC
2NO+2NC
|
|
3TF41
|
20
|
12
|
8.5
|
5.5
|
7.5
|
1.9
|
36.3
|
|
3TF42
|
30
|
16
|
12.5
|
7.5
|
11
|
3.5
|
6
|
|
3TF43
|
30
|
22
|
16.5
|
10
|
15
|
4
|
6.6
|
|
3TF44
|
55
|
32
|
24
|
15
|
22
|
7.5
|
13
|
|
3TF45
|
55
|
86
|
24
|
18.5
|
22
|
9
|
15.5
|
|
3TF46
|
80
|
45
|
40
|
22
|
37
|
12
|
20.8
|
|
3TF47
|
80
|
63
|
60
|
30
|
55
|
14
|
24.3
|
2NO+2NC
4NO+4NC
|
|
3TF48
|
100
|
75
|
60
|
37
|
55
|
17
|
29.5
|
|
3TF49
|
100
|
85
|
80
|
45
|
75
|
21
|
3.6
|
|
3TF50
|
160
|
110
|
95
|
55
|
90
|
27
|
46.9
|
|
3TF51
|
160
|
140
|
120
|
75
|
110
|
35
|
60
|
|
3TF52
|
200
|
170
|
160
|
90
|
150
|
38
|
66
|
|
3TF53
|
210
|
205
|
165
|
110
|
160
|
50
|
86
|
|
3TF54
|
300
|
250
|
230
|
132
|
220
|
58
|
100
|
|
3TF55
|
300
|
300
|
260
|
160
|
250
|
66
|
114
|
|
3TF56
|
400
|
400
|
380
|
200
|
335
|
81
|
140
|
|
3TF58
|
630
|
630
|
600
|
335
|
500
|
160
|
278
|
Competitive Advantage:
1. 3TF-41 Siemens ac magnetic contactor is a high quality mechanical contactor.
2. 3TF-41 Siemens ac magnetic contactor has CE, CB, ISO9001, 14001, IEC certificates.
3. 3TF-41AC Magnetic Contactor.
4. ODM and OEM
