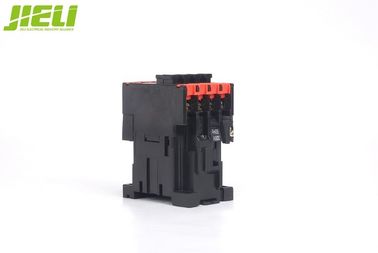

IEC60898 Electrical AC Magnetic Contactor 3 Pole 9A - 105A ODM OEM
Quick Detail:
Place of Origin: Zhejiang China (Mainland)
Brand Name: JIELI
Model Number: JL-B
Electricity Type: AC magnetic contactor
Number of Pole: 3
Phase: 3
Main Circuit Rating Voltage: 380v
Main Circuit Rating Current: 150a,100a,9A~105A
Model: ac magnetic contactor
Rcover: fire proof
Parts: cooper parts
Type: AC / magnetic type
Current: 1-100A
POLE: 3P
Certificate: CE/ISO9001/IEC60898
Suitable for frequency: 50HZ/60HZ
Electrical life: 1,000,000(AC3)
Description:
B series AC magnetic contactors,mainly used in 50/60Hz electrical line of the rated voltage up to 660V AC and rated current up to 475A, are applicable for remote making and breaking of electrical lines or frequent control of AC motors, having no-voltage protection.
Usually, JL-B AC magnetic contactor can be combined with T series thermal relay to form electromgnetion starters which have overload and open-phase protection. It complies with IEC60947&VDE0660.
JL-B AC magnetic contactor has the features like small volume, light weight, low power consumption, high efficiency, safety, reliability etc.
JL-B AC magnetic contactor can be connected to relays to control all kinds of electric device, motors and circuits.
JL-B AC magnetic contactor can be combined together with auxiliary contact group, air delayer, mechanical interlocking contactors and etc, to constitute delayer, reversible contactor or star-triangle starter.
JL-B AC magnetic contactor also be organized into electromagnetic starter by combined with the thermal relay.
Specifications:
|
Technical Specification
|
|
|
|
Type
|
B9
|
B12
|
B16
|
B25
|
B30
|
B37
|
B45
|
|
The highest control power (KW)
|
220V
|
2.2
|
3
|
4
|
6.5
|
9
|
10
|
13
|
|
380V
|
4
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
|
380V
|
4
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
|
660V
|
4
|
5.5
|
7.5
|
11
|
15
|
18.5
|
22
|
|
Rated heating current Ith (A)
|
16
|
20
|
25
|
40
|
45
|
45
|
60
|
|
Rated working current
AC2/AC3/AC4
|
380V
|
8.5
|
11.5
|
15.5
|
22
|
30
|
37
|
44
|
|
660V
|
3.5
|
4.9
|
6.7
|
13
|
17.5
|
21
|
25
|
|
Rated holding power of a
holding coil/pull-in (VA/W)
|
9/2.2
60/50
|
9/2.2
60/50
|
9/2.2
60/50
|
10/3
85/65
|
10/3
85/65
|
22/5
175/125
|
22/5
125
|
|
|
|
Type
|
B65
|
B85
|
B105
|
B170
|
B250
|
B370
|
|
|
The highest control power (KW)
|
220V
|
16
|
20
|
28
|
46
|
60
|
32
|
|
|
380V
|
33
|
45
|
55
|
90
|
132
|
200
|
|
|
500V
|
40
|
50
|
75
|
110
|
160
|
250
|
|
|
660V
|
40
|
50
|
75
|
110
|
160
|
250
|
|
|
Rated heating current Ith (A)
|
80
|
100
|
140
|
230
|
300
|
400
|
|
|
Rated working current
AC2/AC3/AC4
|
380V
|
65
|
85
|
105
|
170
|
245
|
370
|
|
|
660V
|
45
|
55
|
82
|
118
|
170
|
268
|
|
|
Rated holding power of a
holding coil/pull-in (VA/W)
|
30/8
270/130
|
30/8
270/130
|
32/9
510/280
|
60/15
790/460
|
66/16
1100/600
|
100/27
900/350
|
|
