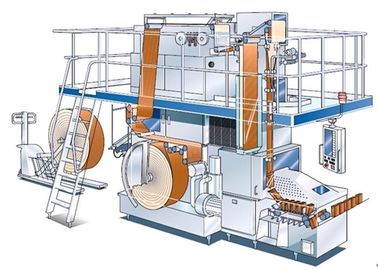

Fully Automatic Juice / Milk Aseptic Brick Paper Carton Filling Machine With 8000BPH





A: Features of the equipment

Description of equipment

 (1) Paper feeding, sterilization, box making, filling, molding and sealing are made automatically, the molding of composite materials using hydrogen peroxide spray and high-intensity ultraviolet radiation and sterile hot air drying, packing, materials completion of the aseptic chamber of the filling and after the filling of the seal are in a positive pressure conditions, thus ensure a sterile packing and the packed juice beverage, after the UHT sterilization at room temperature, long up to one year for shelf life. In addition, the aircraft PLC optical correction, frequency control, pneumatic solenoid valve, vacuum systems, liquid level control, smart electronic thermostat adjustment, automatic fault alarm system and sterile room, etc. use the famous brands in Germany, Japan and other countries, which is used stainless steel for the whole machine, with beautiful appearance and convenient operation.

 (2) We choose roll extrusion in mechanical transmission multilayer push-draw mode as the carton conveyer for the fixed amount, cutting carton and forming.

 (3) We adopt rectangular forming method and device as forming system which makes the function much more reliable, the exterior appearance of the product much perfect.

 (4)Automatically finish all the packing steps, including running over the scroll reposefully, pre-sticking the sealing strip, stick plastic tape, chemical and physical sterilizing, pre-forming cylinder, filling, sealing in cross direction, molding, cutting, sticking angle and delivery.

 (5) This design blends into modern up-to-date technology of optical, mechanical and electronic integration, integrated design and skillful manufacture. Closed loop to control the tension, opto-electricity detection, PLC control, monitoring and operation on touching human-machine interface, radiant heat and high frequency induction heating are adopted skillfully  to make the sealing much firm and reliable in cross and vertical direction.

 (6) The main transmission is mechanical and the auxiliary drive is vapor-pressure type.

 (7) Changing the scroll without stop operating for a special design which can change the scroll freely under the operating situation.



No.

Name

Configuration

Quantity

Brand

1. Mechanical molding

101

Lower traction part



One worm gear and worm reducer NARV50-15 as main traction roller with 0.37 KW of three-phase asynchronous motor;

One Japan SMC cylinder MA40x35 as traction rubber roller

One set

Japan Inovance gear motor

102

Locating mechanism

Oner Japan SMC compact cylinder SDA40x15 for break

One set



103

Tectorial membrane mechanism

One Japan SMC air cylinder MA16x30 as rubber roller for pressed PP film

One set



104

Mechanism for putting mould

One set Germany Igus guide rail; two mold-receiving cylinder SDA12x12; ceramic membrane heater with PTC heating piece

One set



105

Idler pulley mechanism

Japan HRC55-60 pin roll, for all stainless steel hard shaft, with heat treatment of the surface; Germany Igus for cover of pin roll



One set



106

Transverse sealing frame

Aviation aluminum 7075for frame material

One set



107

Transverse sealing clamp claw

United States dupont engineering plastics;stainless steel for key components with heat treatment; Japan NSK bearing; Japan Inovance para-position motor (0.75 KW); U.S. C17200 beryllium bronze for transverse sealing electrode parts

One set



108

Transverse sealing clamp claw motor

4.4 KW of Japan Inovance servo motor

One set



109

Station chain mechanism

26 pieces of finishing chain plates, 7075 aviation aluminum for all material with oxidation treatment for surface

One set



110

Outlet mechanism

Bevel gear reducer at 1:1 rate of APEX brand in Taiwan; cam machine structure for delivering package with turnplate, eight dial package swing arms in one ring, automatic telescopic package

One set



111

Outlet mechanism motor

4.4 KW of Japan Inovance servo motor

One set



112

Upper traction mechanism

Traction box bearing using Swedish SKF stainless steel bearing which is high temperature resistant, corrosion resistant, resistant to acid and alkali. One worm gear and worm reducer NARV50-15 as main traction roller with 0.37KW of three-phase asynchronous motor;

One Japan SMC cylinder MA40x35 as traction rubber roller

One set

Japan Inovance gear motor

113

Transverse high-frequency heater

2 KW of high frequency electromagnetic induction, RDRF-05

One piece

Italy CEIA

114

Vertical sealing high-frequency heater



2 KW of high frequency electromagnetic induction, RDRF-05

One piece

Italy CEIA

115

Tectorial membrane high-frequency heater

2 KW of high frequency electromagnetic induction, RDRF-05

One piece

Italy CEIA

116

Automatic lubrication tankers

30W, Taiwan Tungtay

One set



2. Aseptic system

201

Hot blast heater

15KW

One piece

Japan SAKAGUCHI

202

Hydrogen peroxide tank machine

316 material for hydrogen peroxide tank, inner roll barrel bearing using Japanese ceramic bearing

One set



203



Hydrogen peroxide pump

0.37KW,300L/H

One set

GRUDFOS

204

Hydrogen peroxide heater

2KW

Three pieces

Japan SAKAGUCHI

205

Water-ring vacuum pump

4KW

One set

BECKER

206

Two-position three-way reversing valve of pneumatic

φ51.3

Two pieces

APV

207

Plate heat exchanger

BRF05-160-316L

One set

SHANGHAI NANHUA

208

Temperature sensor

0~200℃/450℃

Five pieces

Omron

209

Ball valve, Butterfly valve, Angle seat valve





Several

Shanghai YuanAn

210

Pressure regulating valve, safety valve



Each for one

APV

211

Constant flow valve



Two pieces

APV

212

Sterile proportional control valve



One piece

Germany BURKERT

3. Electrical configuration

301

Air circuit breaker

C65N-D



Schneider

302

AC contactor

LC1-D****N





Schneider

303



Intermediate relay

MY2NJ



Omron

304

Frequency converter

ATV303H



Schneider

305

Servo motor/ Servo driver

LSMH/LS600P



Japan Inovance

306

Programmable Controller PLC

S7-200CN



SIEMENS

307

Human-computer interface

6AV66480BE113AX0



SIEMENS

308

Temperature controller

PXR9NEH



Japan FUJI

309

Voltage Regulator Module

STY**A-III



FuShen Science and Technology

310

Proximity switch

LE**SF**DP0



LABINO

311

Magnetic switch

D-AS3





Japan

312

Color mark sensor

KT5W-2P2116D



SICK

313

Absolute encoder

TRD-NA





Japan

314

Switching mode power supply





Meanwell
