Electrical Miniature Residual Current Circuit Breaker with CE Certification

Electrical Miniature Residual Current Circuit Breaker with CE Certification
Electrical Miniature Residual Current Circuit Breaker with CE Certification

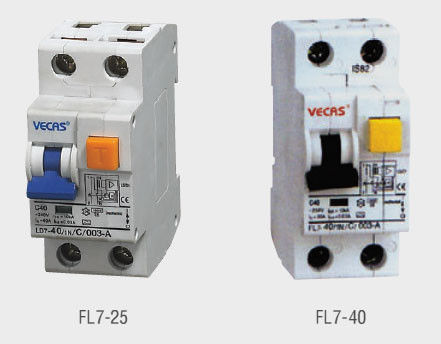

Large Image :  Electrical Miniature Residual Current Circuit Breaker with CE Certification

Product Details:
Place of Origin: China
Brand Name: VECAS
Certification: CE
Model Number: HCL7-63
Features: automatic|High breaking capacity
Color: customized
Electricity Type: AC
product name: Residual Current Circuit Breaker
type: Earth leakage
Usage: electrical
Certificate: CE
breaking capacity: 10KA
Contact Now
Detailed Product Description
Highlight:

main circuit breaker





Electrical Miniature Residual Current Circuit Breaker with CE  Certification





Specification and Feature





  •  High-quality residual current device/miniature circuit breaker combination, line voltage-independent
  •  Contact position indicator red-green
  •  Colour code for rated tripping currents
  •  Comprehensive range of accessories suitable for subsequent installation
  •  Wide variety of rated tripping currents
  •  Rated currents up to 40A
  •  Tripping characteristics C
  •  Rated breaking capacity 10KA



Technical Data





In/i△n/(A)

Type Designation

Article No

Units per package

2/0.03

HCL7-2/1N/C/003

382153

1/60

4/0.03

HCL7-4/1N/C/003

382154

1/60

6/0.03

HCL7-6/1N/C/003

382155

1/60

10/0.03

HCL7-10/1N/C/003

382156

1/60

15/0.03

HCL7-15/1N/C/003

382157

1/60

16/0.03

HCL7-16/1N/C/003

382158

1/60

20/0.03

HCL7-20/1N/C/003

382159

1/60

25/0.03

HCL7-25/1N/C/003

382160

1/60

32/0.03

HCL7-32/1N/C/003

382161

1/60

40/0.03

HCL7-40/1N/C/003

382162

1/60

2/0.1

HCL7-2/1N/C/01

382163

1/60

4/0.1

HCL7-4/1N/C/01

382164

1/60

6/0.1

HCL7-6/1N/C/01

382165

1/60

10/0.1

HCL7-10/1N/C/01

382166

1/60

15/0.1

HCL7-15/1N/C/01

382167

1/60

16/0.1

HCL7-16/1N/C/01

382168

1/60

20/0.1

HCL7-20/1N/C/01

382169

1/60

25/0.1

HCL7-25/1N/C/01

382170

1/60

32/0.1

HCL7-32/1N/C/01

382171

1/60

40/0.1

HCL7-40/1N/C/01

382172

1/60
