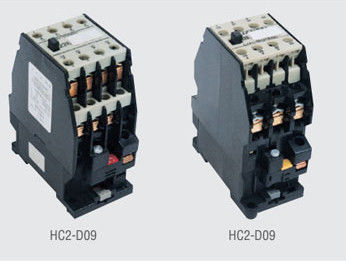

Alternating current AC / DC Magnetic Contactor switch for Air Conditioner

Large Image : Alternating current AC / DC Magnetic Contactor switch for Air Conditioner

Product Details:

Place of Origin:	China
Brand Name:	Wu Yin
Certification:	ISO
Model Number:	SHB

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C,T/T,Paypal
Supply Ability:	50000/MONTH

Contact Now

Detailed Product Description

Rating Voltage:	660V	Electricity Type:	AC
Feature:	High Voltage	Product Name:	Magnetic Contactor Switch
Type:	Alternating Current	Usage:	Electrical
Highlight:	miniature limit switch

Alternating current AC / DC Magnetic Contactor switch for Air Conditioner

Application

The contactor is suitable for using in the circuit up to the rated voltage 660V AC 50Hz or 60Hz, rated current 630A, for making and breaking, and for frequent starting and controlling the motor. After combined with the mechanical interlocking device, it becoomes 3TD series convertible contactor for controlling,starting, breaking and reversing of the motor. The products comply with IEC947 & VDE0660.

Speciﬁcarions

Type	Rated thermal current (A)	Rated operating current at 380V (A)	Rated operating current at 660V (A)	The power of controlled motor (KW)		Type of auxiliary contact
Type	Rated thermal current (A)	Rated operating current at 380V (A)	Rated operating current at 660V (A)	380(V)	660(V)	Type of auxiliary contact
SHB40	22	9	7.2	4	5.5	1NO 1NC 1NO+1NC 2NO+2NC
SHB41	22	12	9.5	5.5	7.5
SHB42	35	16	13.5	7.5	11
SHB43	35	22	13.5	11	11
SHB44	55	32	18	15	15	2NO+2NC
